Product Summary

The LTPH245D is a line thermal printer. It is a compact, high-speed thermal line dot printing mechanism. The LTPH245D can be used with a measuring instrument and analyzer, a POS, a communication device, or a data terminal device. Since the printer can be battery driven, the LTPH245D can easily be mounted onto a portable device such as a hand-held terminal.

Parametrics

LTPH245D absolute maximum ratings: (1)LED (input). Forward current, IF: 50 mA; Reverse voltage, VR: 5 V; Allowable current, P: 70 mW; (2)Phototransistor (output). Collector-to-emitter voltage, VCEO: 20 V; Emitter-to-collector voltage, VECO: 5 V; Collector current, IC: 20 mA; Collector loss, PC: 70 mW; (3)Operating temperature, Topr: -20°C to + 80°C; (4)Storage temperature, Tstg: -30°C to + 100°C.

Features

LTPH245D features: (1)Battery drive: Since the range of operating voltage of 4.2V to 8.5V is wide, four to six Ni-Cd batteries or Ni- MH batteries or two Lithium-ion batteries can also be used; (2)Compact and light weight 1: The mechanism is compact and light: 76.8 mm in width, 38 mm in depth, 16 mm in height, and approximately 46 g in weight; (3)Improved operability: The platen roller can be released easily by lever operation allowing easy paper installation and head cleaning; (4)High resolution printing: A high-density print head of 8 dots/mm produces clear and precise printing.; (5)Longevity: The mechanism is maintenance-free with a long life of 50 km print length and/or 100 million pulses; (6)High speed printing: 2 A maximum print speed of 200 dot lines per second (25 mm per second)at 5 V, 450 dot lines per second (56.25 mm per second)at 7.2 V, and 500 dot lines per second (62.5 mm per second)at 8.0 V are attainable.

Diagrams

LTPH245D pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

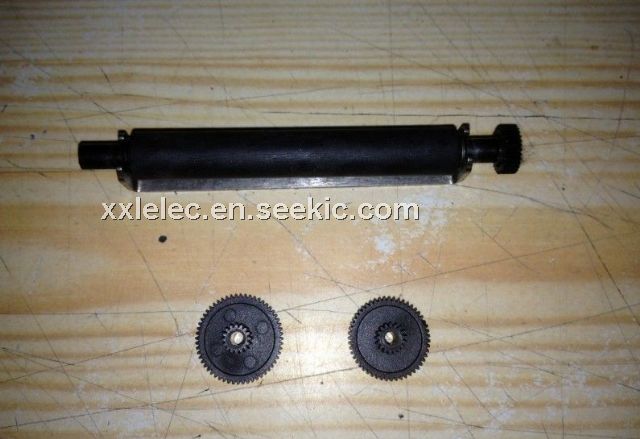

LTPH245D-C384-E
LTPH245D-C384-E
Seiko Instruments
Printers 76.8X38X16 384 DOTS
Data Sheet
Negotiable
