Product Summary

The 2sj74bl is a TOSHIBA field effect transistor of silicon P channel junction type. It is widely applied to low noise audio amplifier. The 2sj74bl is also recommended for first stages of EQ amplifiers and M.C. head amplifiers. There are three pins including drain, gate as well as source. The package is TO-92.

Parametrics

2sj74bl absolute maximum ratings:(1)Gate-drain voltage, VGDS: 25V; (2)Gate current, IG: 10mA; (3)Drain power dissipation, PD: 400mW; (4)Junction temperature, Tj: 125℃; (5)Storage temperature range, Tstg: 55 to 125℃.

Features

2sj74bl features:(1)Low Noise Audio Amplifier Applications; (2)Recommended for first stages of EQ amplifiers and M.C. head amplifiers; (3)High |Yfs|: |Yfs| = 22 mS (typ.) (VDS = -10 V, VGS = 0, IDSS = -3 mA); (4)Low noise: En = 0.95 nV/Hz1/2 (typ.) (VDS = -10 V, ID = -1 mA, f = 1 kHz); (5)High input impedance: IGSS = 1.0 nA (max) (VGS = 25 V); (6)Complimentary to 2SK170.

Diagrams

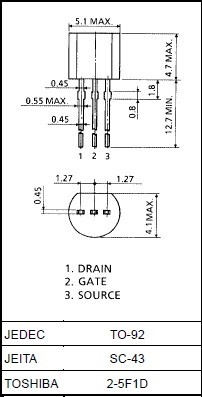

2sj74bl diagram
