Product Summary

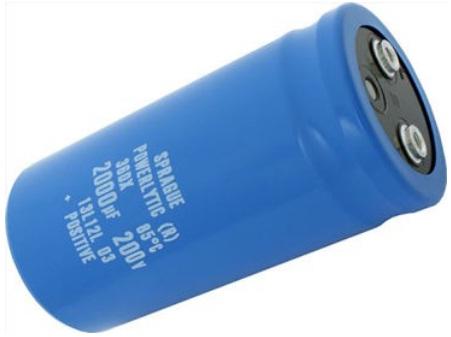

The 36de1013b is an Aluminum Capacitor.

Parametrics

36de1013b absolute maximum ratings: (1)Nominal case size, D x L in inches (mm): 1.453 x 2.250 (36.9 x 57.2) to 3.078 x 8.750 (78.2 x 222.3); (2)Operating temperature: 40 °C to + 95 °C; (3)Rated capacitance range, CR: 190 μF to 50 000 μF; (4)Tolerance on CR: + 75 %, - 10 % (10 WVDC to 100 WVDC); + 50 %, - 10 % (200 WVDC to 450 WVDC); (5)Rated voltage range, UR: 10 WVDC to 450 WVDC; (6)Life validation test at 85 °C: 1000 h ΔCAP ± 15 % from initial measurement. ΔESR 1.5 x initial specified limit.

Features

36de1013b features: (1)High capacitance per case size; (2)High ripple current; (3)Low leakage current; (4)Long shelf life and operating life; (5)Type 36D ratings recommended for replacement applications only. For new designs, see type 36DY; (6)Screw terminal; (7)Material categorization: For definitions of compliance.

Diagrams

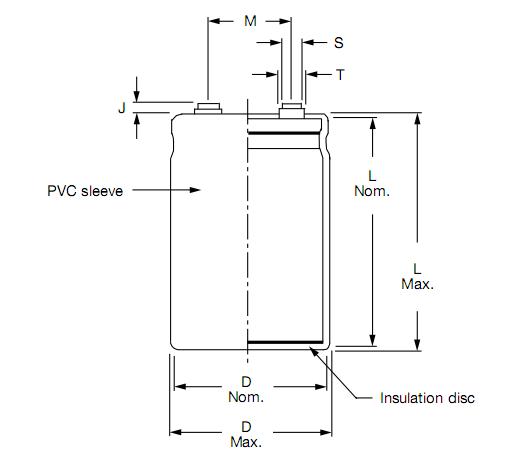

36de1013b block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
36DE1013B
36DE1013B
Vishay/Sprague
Aluminum Electrolytic Capacitors - Screw Terminal 64000uF 15volts -10+50% CASE CODE BY
Data Sheet
0-1: $23.87
1-10: $21.22
10-25: $19.16
25-50: $16.97
