Product Summary
The 71055-10 is a switched capacitor voltage converter that produces a regulated, low-ripple output voltage from an unregulated input voltage. Input supply voltage of 3.0 V to 5.5 V makes the REG71055 ideal for a variety of battery sources, such as single-cell Li-Ion, or two- and three-cell nickel- or alkaline-based chemistries.
Parametrics
71055-10 absolute maximum ratings: (1)VIN Supply voltage: 3 V to 6 V; (2)VEN Enable input voltage: –0.3 V to VIN; (3)tSC Output short-circuit duration: Indefinite; (4)TSTG Storage temperature range: –65°C to 150°C; (5)TLEAD Lead temperature (soldering, 10 seconds): 260°C.
Features
71055-10 features: (1)Qualified for Automotive Applications; (2)1-MHz Internal Oscillator Allows Small; (3)Input Voltage Range: 3.0 V to 5.5 V Capacitors; (4)Automatic Step-Up Operation; (5)Shutdown Mode; (6)Low Input Current Ripple; (7)Thermal and Current Limit Protection; (8)Low Output Voltage Ripple; (9)5.5-V Output Voltage; (10)Minimum Number of External Components, No; (11)Small TSOT23-6 (DDC)Package.

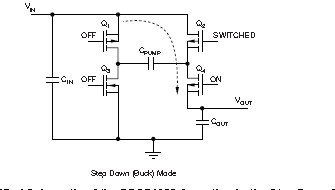

Diagrams
