Product Summary

The BAT42WS(E2) is a Surface Mount Schottky Barrier Diode.

Parametrics

BAT42WS(E2) absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 30V; Working Peak Reverse Voltage, VRWM: 30V; DC Blocking Voltage, VR: 30 V; (2)RMS Reverse Voltage, VR(RMS): 21 V; (3)Forward Continuous Current, IFM: 200 mA; (4)Repetitive Peak Forward Current @ t < 1.0s, IFRM: 500 mA; (5)Non-Repetitive Peak Forward Surge Current @ t < 10ms, IFSM: 4.0A; (6)Power Dissipation, Pd: 200 mW; (7)Thermal Resistance Junction to Ambient Air, RθJA: 625℃/W; (8)Operating and Storage Temperature Range Tj , TSTG: -55 to +125℃.

Features

BAT42WS(E2) features: (1)Low Forward Voltage Drop; (2)Fast Switching; (3)Ultra-Small Surface Mount Package; (4)Lead Free/RoHS Compliant.

Diagrams

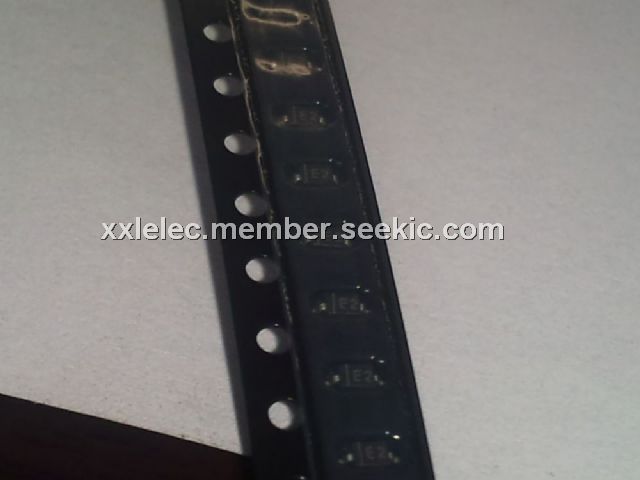

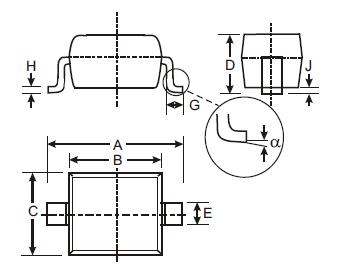

BAT42WS(E2) block diagram
