The C8051F360 is a Mixed Signal ISP Flash MCU. The C8051F360 includes a 10-bit current-mode Digital-to-Analog Converter(IDA0). The maximum current output of the IDA0 can be adjusted for three different current settings: 0.5 mA, 1 mA, and 2 mA. The C8051F360 features a flexible output update mechanism which allows for seamless full-scale changes and supports jitter-free updates for waveform generation. Three update modes are provided, allowing IDA0 output updates on a write to IDA0H, on a Timer overflow, or on an external pin edge.
Parametrics
C8051F360 absolute maximum ratings: (1)Ambient temperature under bias: -55 to 125℃; (2)Storage Temperature: -65 to 150℃; (3)Voltage on any Port I/O Pin or RST with respect to GND: -0.3 to 5.8 V; (4)Voltage on VDD with respect to GND: -0.3 to 4.2 V; (5)Maximum Total current through VDD or GND: 500 mA; (6)Maximum output current sunk by RST or any Port pin: 100 mA.
Features
C8051F360 features: (1)High-speed pipelined 8051-compatible microcontroller core (up to 100 MIPS); (2)In-system, full-speed, non-intrusive debug interface (on-chip); (3)True 10-bit 200 ksps 16-channel single-ended/differential ADC with analog multiplexer; (4)10-bit Current Output DAC; (5)2-cycle 16 by 16 Multiply and Accumulate Engine; (6)Precision programmable 25 MHz internal oscillator; (7)Up to 32 kB of on-chip Flash memory-1024 bytes are reserved; (8)1024 bytes of on-chip RAM; (9)External Data Memory Interface with 64 kB address space; (10)SMBus/I2C, Enhanced UART, and Enhanced SPI serial interfaces implemented in hardware; (11)Four general-purpose 16-bit timers; (12)Programmable Counter/Timer Array (PCA) with six capture/compare modules and Watchdog Timer function; (13)On-chip Power-On Reset, VDD Monitor, and Temperature Sensor; (14)Two on-chip Voltage Comparators; (15)Up to 39 Port I/O (5 V tolerant).

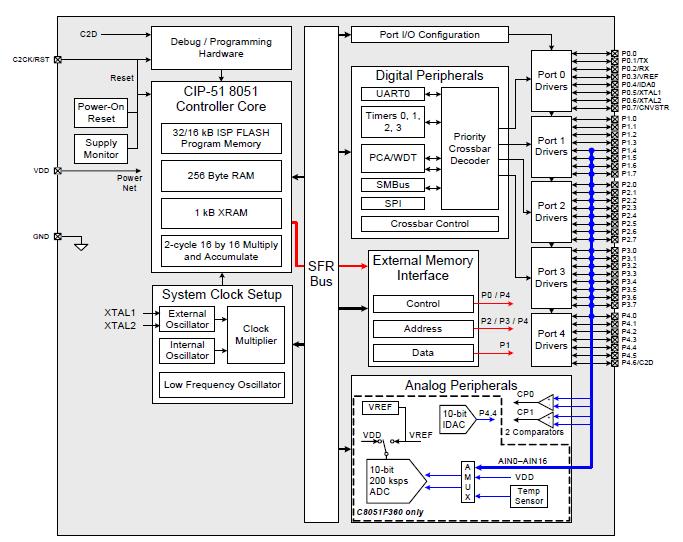

Diagrams
