Product Summary
The EXC3BB102H is a chip bead core. Applications are (1)Digital equipment such as PCs, word processors, print ers, HDD, PCC, CD-ROMs, DVD-ROMs; (2)Digital audio and video equipment such as VCRs, DVC, CD Players, DVD Players; (3)AC adapters, and switching power supplies; (4)Electronic musical instruments, and other digital equipment.
Parametrics
EXC3BB102H absolute maximum ratings: (1)Rated Current: 50mA; (2)DC Resistance: 1Ω.
Features
EXC3BB102H features: (1)Effective noise suppression for power lines and high speed signal lines; (2)Easy pattern layout on PC Board; (3)High impedance for high speed signal line noise; (4)Increased attenuation; (5)60 -1 A, 120 -0.5 A are achieved by using 1608 size (type: EXC3BP); (6)Low DC Resistance 3 to 8 m typical: Rated current (3 and 4 Amperes)(type: EXCML); (7)Low impedance.

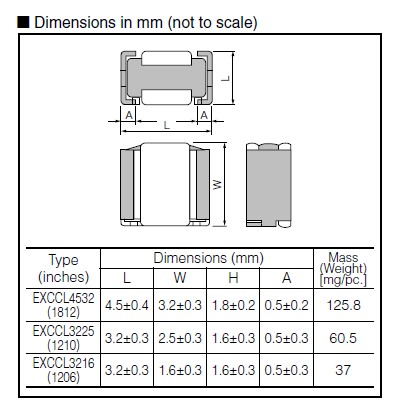

Diagrams
