Product Summary
The HCPL2630 is a dual-channel optocoupler, consists of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40℃ to +85℃. The applications of the HCPL2630 include Ground loop elimination, LSTTL to TTL, LSTTL or 5-volt CMOS, Line receiver, data transmission, Data multiplexing, Switching power supplies, Pulse transformer replacement, Computer-peripheral interface.
Parametrics
HCPL2630 absolute maximum ratings: (1)TSTG, Storage Temperature: -55 to +125℃; (2)TOPR, Operating Temperature: -40 to +85℃; (3)TSOL, Lead Solder Temperature: 260 for 10 sec℃; (4)IF, DC/Average Forward Single Channel: 50 mA; Input Current Dual Channel (Each Channel): 30mA; (5)VE, Enable Input Voltage: Not to Exceed; (6)VCC, by more than: 500mV; (7)Single Channel: 5.5 V; (8)VR, Reverse Input Voltage Each Channel: 5.0 V; (9)PI, Power Dissipation Single Channel: 100 mW; (10)Dual Channel (Each Channel): 45mW.
Features
HCPL2630 features: (1)Very high speed -10 MBit/s; (2)Superior CMR -10 kV/μs; (3)Double working voltage-480V; (4)Fan-out of 8 over -40℃ to +85℃; (5)Logic gate output; (6)Strobable output; (7)Wired OR-open collector; (8)U.L. recognized (File # E90700).

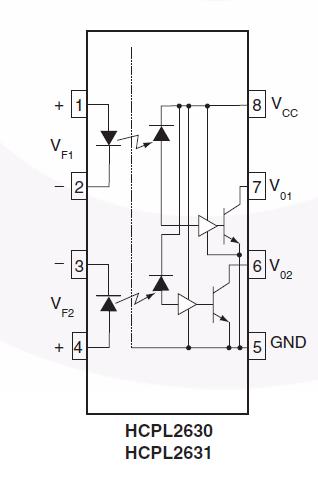

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL2630 |
Fairchild Semiconductor |
High Speed Optocouplers DIP-8 HS LOGIC GATE |
Data Sheet |
|
|
||||||||||||
|
HCPL2630_Q |
Fairchild Semiconductor |
High Speed Optocouplers DIP-8 HS LOGIC GATE |
Data Sheet |
Negotiable |
|
||||||||||||
|
HCPL2630S |
Fairchild Semiconductor |
High Speed Optocouplers SO-8 HS LOGIC GATE |
Data Sheet |
|
|
||||||||||||
|
HCPL2630SD |
Fairchild Semiconductor |
High Speed Optocouplers SMD OPTOCOUPLER |
Data Sheet |
|
|
||||||||||||
|
HCPL2630SDV |
Fairchild Semiconductor |
High Speed Optocouplers 2Ch 10MBit/s Optocpl Logic Gate Output |
Data Sheet |
|
|
||||||||||||
|
HCPL2630S_Q |
Fairchild Semiconductor |
High Speed Optocouplers SO-8 HS LOGIC GATE |
Data Sheet |
Negotiable |
|
||||||||||||
|
HCPL2630SV |
Fairchild Semiconductor |
High Speed Optocouplers 2Ch 10MBit/s Optocpl Logic Gate Output |
Data Sheet |
|
|
||||||||||||
|
HCPL2630WV |
Fairchild Semiconductor |
High Speed Optocouplers 2Ch 10MBit/s Optocpl Logic Gate Output |
Data Sheet |
|
|
||||||||||||
