The HEF4073BT is a Triple 3-input AND gate. The HEF4073BT provides the positive triple 3-input AND function. The outputs are fully buffered for highest noise immunity and pattern insensitivity of output impedance.
Parametrics
HEF4073BT absolute maximum ratings: (1)propagation delays, high to low, tphl: 55ms typ, 110ns max when VDD=5V; 25ns typ, 50ns max when VDD=10V; 20ns typ, 40ns max when VDD=15V; (2)propagation delays, low to high, tplh: 45ms typ, 90ns max when VDD=5V; 20ns typ, 40ns max when VDD=10V; 15ns typ, 30ns max when VDD=15V; (3)output transistion times, high to low, tthl: 60ms typ, 120ns max when VDD=5V; 30ns typ, 60ns max when VDD=10V; 20ns typ, 40ns max when VDD=15V; (4)output transistion times, low to high, tthl: 60ms typ, 120ns max when VDD=5V; 30ns typ, 60ns max when VDD=10V;20ns typ, 40ns max when VDD=15V.
Features
HEF4073BT features: (1)medium speed operation; (2)quiescent current specified to 20V for HCC device; (3)5V, 10V, and 15V parametric ratings; (4)input current of 100nA at 18V and 25℃ for HCC device; (5)100% tested for quiescent current.

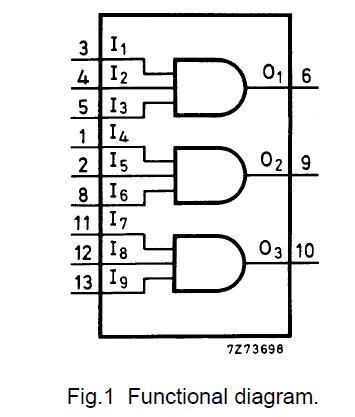

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HEF4073BT,652 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) TRPL 3INPUT AND GATE |
Data Sheet |
|
|
||||||||||||
|
HEF4073BT,653 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) TRPL 3INPUT AND GATE |
Data Sheet |
|
|
||||||||||||
