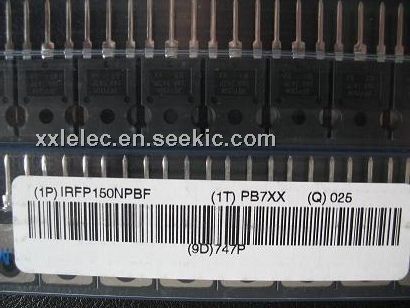

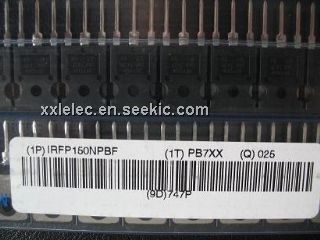

IRFP150NPBF

IRFP150NPBF, fifth Generation HEXFET, 42A, 160 W, 10V, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	20.00 / Piece
501 ~ 1000 :	18.00 / Piece
1001 ~ 3000 :	15.00 / Piece

PartNumber:: IRFP150NPBF

Brand:: International Rectifier - IR | Pack: TO | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:IRFP150NPBF
US $15.00 - 20.00
IRFP150NPBF

US $1.00 - 10.00 / Piece
(0) Remove
IRFP150NPBF

US $0.55 - 0.65 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFP150NPBF fifth Generation HEXFET from International Rectifier utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFET IRFP150NPBF is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-247 package of the IRFP150NPBF is preferred for commercialindustrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole.

Parametrics

IRFP150NPBF absolute maximum ratings: (1)ID @ TC = 25℃ at Continuous Drain Current, VGS @ 10V: 42A max; (2)ID @ TC = 100℃ at Continuous Drain Current, VGS @ 10V: 30 A max; (3)IDM, Pulsed Drain Current:140A max; (4)PD @TC = 25℃, Power Dissipation: 160 W; (5)Linear Derating Factor: 1.1 W/℃; (6)VGS, Gate-to-Source Voltage: ± 20 V; (7)EAS, Single Pulse Avalanche Energy: 420 mJ; (8)IAR, Avalanche Current: 22 A; (9)EAR, Repetitive Avalanche Energy: 16 mJ; (10)dv/dt, Peak Diode Recovery dv/dt: 5.0 V/ns; (11)TJ Operating Junction and TSTG Storage Temperature Range: -55 to + 175℃; (12)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃; (13)Mounting torque, 6-32 or M3 srew: 10 lbf.in (1.1N.m)℃.

Features

IRFP150NPBF features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Fully Avalanche Rated.
