Product Summary

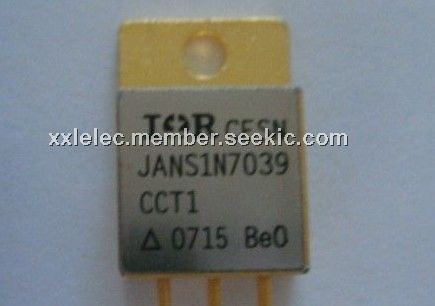

The JANS1N7039CCT1 is a Schottky rectifier. The JANS1N7039CCT1 has been expressly designed to meet the rigorous requirements of Hirel environments. It is packaged in the hermetic isolated TO-257AA package. The device’s forward voltage drop and reverse leakage current are optimized for the lowest power loss and the highest circuit efficiency for typical high frequency switching power supplies and resonent power converters. Ful lMIL-PRF-19500 quality conformance testing is available on source control drawings to TX, TXV and S levels.
Parametrics
JANS1N7039CCT1 absolute maximum ratings: (1)IF(AV) Max. Average Forward Current: 10 A; (2)IFSM Max. Peak One Cycle Non - Repetitive: 110 A.
Features
JANS1N7039CCT1 features: (1)Hermetically Sealed; (2)Low Forward Voltage Drop; (3)High Frequency Operation; (4)Guard Ring for Enhanced Ruggedness and Long Term Reliability; (5)Lightweight; (6)Ceramic Eyelets.
Diagrams
 |
