Product Summary
The L9733 is a highly flexible monolithic, medium current, output driver that incorporates 8 outputs that can be used as either internal low or high side drives in any combination. Outputs 1-8 are self-configuring as high or low side drives. Self-configuration allows a user to connect a high or low side load to any of these outputs and the L9733 will drive them correctly as well as provide proper fault mode operation with no other needed inputs. In additon, Outputs 6, 7 and 8 can be PWM controlled via a external pins (IN6-8).
Parametrics
L9733 absolute maximum ratings: (1)Supply Voltage, VDD: -0.3 to 7 V; (2)Supply Voltage, Vbat: -0.3 to 40 V; (3)CS, DI, DO, SCLK, EN, IN6, IN7, IN8, VDO, Vbat: -0.3 to 7.0 V; (4)SRC 1-8, Vbat: -24 to 40 VDC; (5)DRN1-8, Vbat: -0.3 to 60 VDC; (6)Current Limit of Output 1-8, IOL: 2.5 A; (7)OverCurrent protection at Output 1-8, IOP: 3 A; (8)Maximum Clamping Energy: 20 mj; (9)Human Body Model, ESD: ±2 vs. GND kV.
Features
L9733 features: (1)Eight independently self configuring low/high drivers; (2)Supply voltage from 4.5V to 5.5V; (3)RON(max)=0.7Ω @ Tj = 25℃, RON(max)=1.2Ω @Tj = 125℃; (4)Minimum current limit of each output 1A; (5)Output voltage clamping min. 40V in low side configuration; (6)Output voltage clamping max. -14V in high side configuration; (7)SPI interface for outputs control and for diagnosis data communication; (8)Additional PWM inputs for 3 outputs; (9)Independent thermal shutdown for all outputs Open load, Short to GND, short to Vb, Overcurrent diagnostics in latched or unlatched mode for each channel; (10)Internal charge pump without need of external capacitor; (11)Controlled SR for reduced EMC.

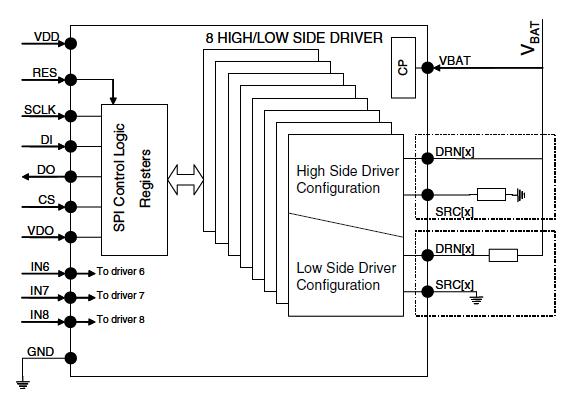

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L9733CN |
STMicroelectronics |
Low Dropout (LDO) Regulators Quad Squib Driver PTS SmartPower |
Data Sheet |
|
|
||||||||||
|
L9733CNTR |
STMicroelectronics |
Low Dropout (LDO) Regulators Quad Squib Driver PTS SmartPower |
Data Sheet |
|
|
||||||||||
|
L9733XP |
STMicroelectronics |
Low Dropout (LDO) Regulators Octal self Config Low/High Side Driver |
Data Sheet |
|
|
||||||||||
|
L9733XPTR |
STMicroelectronics |
Low Dropout (LDO) Regulators Octal self Config Low/High Side Driver |
Data Sheet |
|
|
||||||||||
