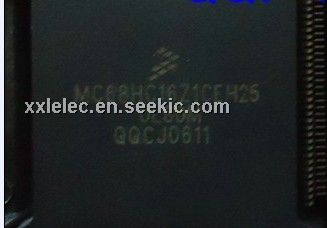

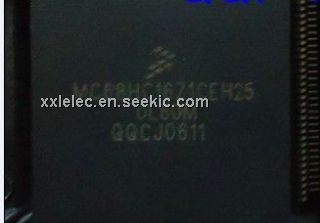

Product Summary

The MC68HC16Z1CEH25 microcontroller is a high-speed 16-bit control unit that is upwardly code compatible with M68HC11 controllers. The MC68HC16Z1CEH25 is of the M68HC16 Family of modular microcontrollers. The MC68HC16Z1CEH25 microcontroller (MCU) is built from standard module that interfaces via a common internal bus.

Parametrics

MC68HC16Z1CEH25 maximum ratings: (1) Analog Supply VDDA: -0.3V to 6.5V; (2) Internal Digital Supply, with reference to VSSI: -0.3V to 6.5V; (3) Reference Supply, with reference to VSSI: -0.3V to 6.5V; (4) VRL to VSSA Differential Voltage: -6.5V to 6.5V; (5) Positive Overvoltage Current Coupling Ratio: 2000; (6) Negative Overvoltage Current Coupling Ratio: 500; (7) Maximum Input Current: -25mA to 25mA.

Features

MC68HC16Z1CEH25 features: (1) 16-bit architecture; (2) Full set of 16-bit instructions; (3) Background debug mode; (4) External bus support; (5) Two 8-bit dual function input/output ports; (6) Addresses up to 1 Mbyte of program memory; 1 Mbyte of data memory; (7) Programmable chip-select outputs; (8) Watchdog timer, clock monitor, and bus monitor.

Diagrams

MC68HC16Z1CEH25 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MC68HC16Z1CEH25
MC68HC16Z1CEH25

Freescale Semiconductor

16-bit Microcontrollers (MCU) 16 BIT MCU 1K RAM

Data Sheet

0-1: $14.04
1-25: $12.92
25-100: $11.01
100-500: $10.48
