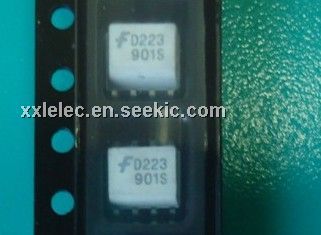

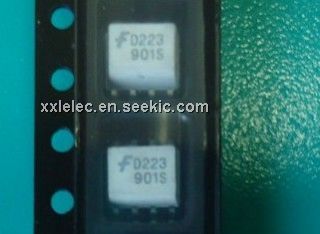

MOCD223

MOCD223, dual channel phototransistor, 30 V, 150 mA, 150 mW, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: MOCD223

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:MOCD223
US $3.00 - 5.00
Quantity:

piece

Product Summary

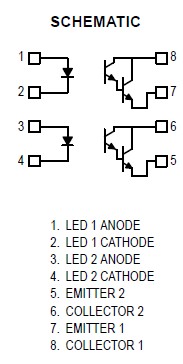

The MOCD223 is a dual channel phototransistor. The MOCD223 consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor darlington detectors, in a surface mountable, small outline plastic package. The MOCD223 is ideally suited for high density applications that require low input current and eliminates the need for through-the-board mounting. The applications of the MOCD223 include: Interfacing and coupling systems of different potentials and impedances, General purpose switching circuits, Monitor and detection circuits.

Parametrics

MOCD223 absolute maximum ratings: (1)Collector-Emitter Voltage VCEO: 30 V; (2)Collector-Base Voltage VCBO: 70 V; (3)Emitter-Collector Voltage VECO: 7.0 V; (4)Collector Current-Continuous IC: 150 mA; (5)Detector Power Dissipation @ TA = 25℃ PD: 150 mW; Derate above 25℃: 1.76 mW/℃; (6)Input-Output Isolation Voltage(f = 60 Hz, t = 1 min. Duration)VISO: 2500 Vac(rms); (7)Ambient Operating Temperature Range TA: -40 to +100 ℃; (8)Storage Temperature Range Tstg: -40 to +150 ℃; (9)Lead Soldering Temperature(1/16 from case, 10 sec. duration) TL: 260 ℃.

Features

MOCD223 features: (1)U.L. Recognized (File #E90700, Volume 2); (2)VDE Recognized (File #13616) (add option V for VDE approval, i.e, MOCD223V-M); (3)Convenient Plastic SOIC-8 Surface Mountable Package Style; (4)High Current Transfer Ratio of 500% Minimum at IF= 1 mA; (5)Minimum BVCEO of 30 Volts Guaranteed; (6)Standard SOIC-8 Footprint, with 0.050 Lead Spacing; (7)Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering; (8)High Input-Output Isolation Voltage of 2500 V AC(rms) Guaranteed.
