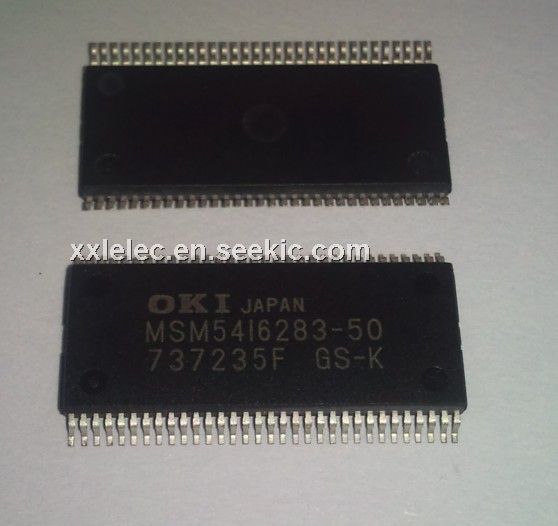

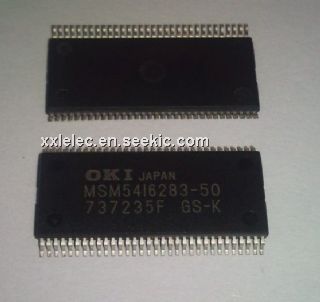

Product Summary
The MSM5416283-50GS-K is a 4-Mbit CMOS multiport DRAM composed of a 262,144-word by 16-bit dynamic RAM, and a 512-word by 16-bit SAM. Its RAM and SAM operate independently and asynchronously. It supports three types of operations: random access to RAM port, high speed serial access to SAM port, and bidirectional transfer of data between any selected row in the RAM port and the SAM port. In addition to the conventional multiport DRAM operating modes, the MSM5416283-50GS-K features block write, flash write functions, extended page mode on the RAM port, a split data transfer capability, and programmable stops on the SAM port.
Parametrics
MSM5416283-50GS-K absolute maximum ratings: (1)Input Output Voltage, VT: -1.0 to 7.0 V; (2)Output Current, IOS: 50 mA; (3)Power Dissipation, PD: 1 W; (4)Operating Temperature, Topr: 0 to 70℃; (5)Storage Temperature, Tstg: -55 to 150℃.
Features
MSM5416283-50GS-K features: (1)Single power supply: 5 V ±10%; (2)Full TTL compatibility; (3)Multiport organization, RAM : 256K word ×16 bits; SAM : 512 word ×16 bits; (4)Extended page mode; (5)Write per bit; (6)Persistent write per bit; (7)Byte write; (8)Masked flash write; (9)Masked block write (8 columns); (10)RAS only refresh; (11)CAS before RAS refresh; (12)Hidden refresh; (13)Serial read/write; (14)512 tap location; (15)Programmable stops; (16)Bidirectional data transfer; (17)Split transfer; (18)Masked write transfer; (19)Refresh: 512 cycles/8 ms.

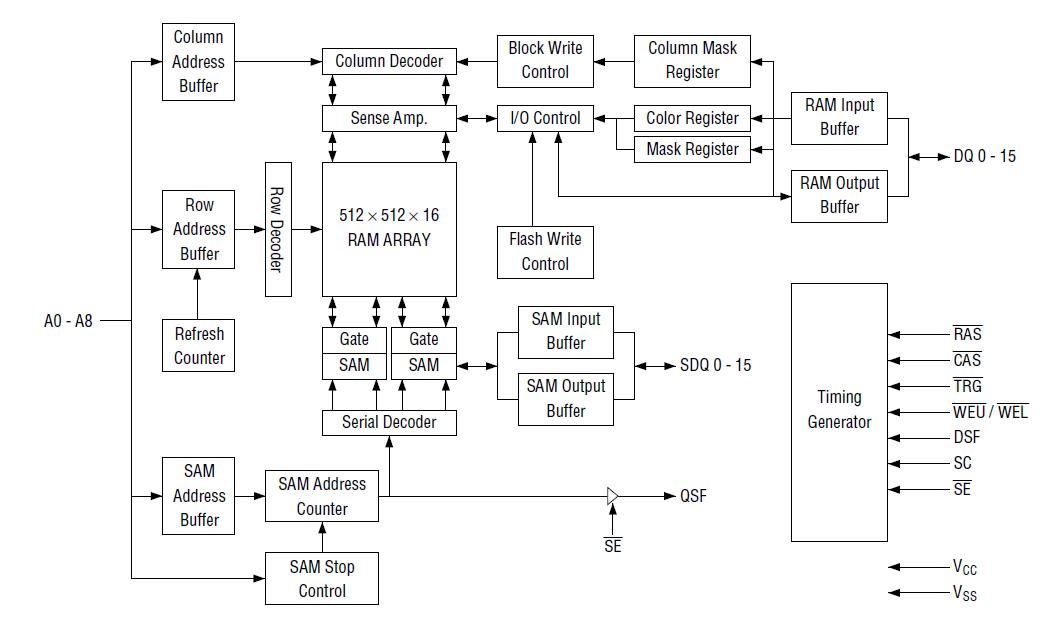

Diagrams
