Product Summary

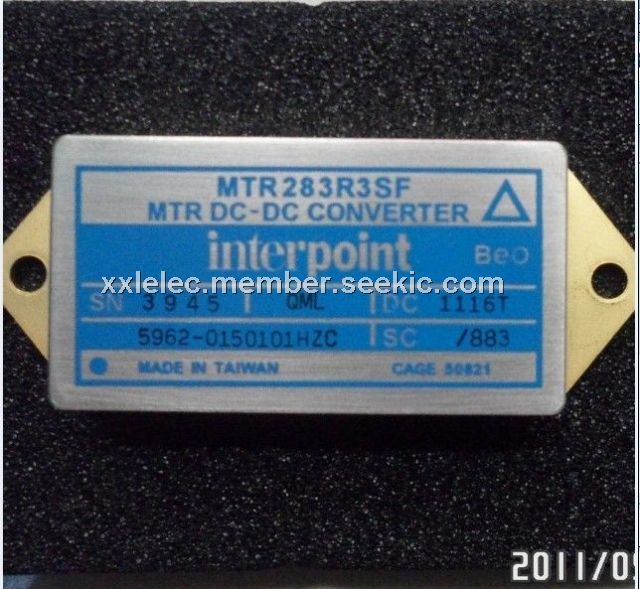

The MTR283R3SF is a DC/DC converter. The MTR283R3SF offers up to 30 watts of output power from single, dual, or triple output configurations. The device operates over the full military temperature range with up to 84% efficiency. MTR converter is packaged in hermetically sealed metal cases, making them ideal for use in military, aerospace and other high reliability applications.

Parametrics

MTR283R3SF absolute maximum ratings: (1)Input Voltage: 16 to 40 VDC; (2)Output Power: 25 to 30 watts depending on model; (3)Lead Soldering Temperature (10 sec per pin): 300℃; (4)Storage Temperature Range (Case): -65℃ to +135℃.

Features

MTR283R3SF features: (1)55℃ to +125℃ operation; (2)16 to 40 VDC input; (3)Fully isolated; (4)Magnetic feedback; (5)Fixed frequency 600 kHz typical; (6)Topology ?Single Ended Forward; (7)50 V for up to 50 ms transient protection; (8)Inhibit and synchronization functions; (9)Indefinite short circuit protection; (10)Up to 30 watts output power; (11)Trim and remote sense on single output models; (12)Up to 84% efficiency.

Diagrams

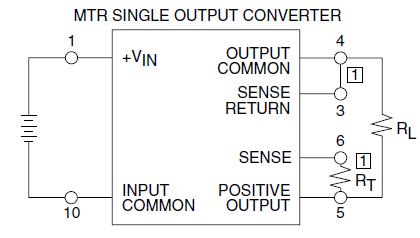

MTR283R3SF block diagram
