SAF-XC164CS-16F40F

SAF-XC164CS-16F40F, 3.25 V, 10 mA, single-chip CMOS microcontroller, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	10.00 / Piece
501 ~ 1000 :	9.00 / Piece
1001 ~ 3000 :	8.00 / Piece

PartNumber:: SAF-XC164CS-16F40F

Brand:: Infineon Technologies AG - Infineon | Pack: QFP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:SAF-XC164CS-16F40F
US $8.00 - 10.00
Quantity:

piece

Product Summary

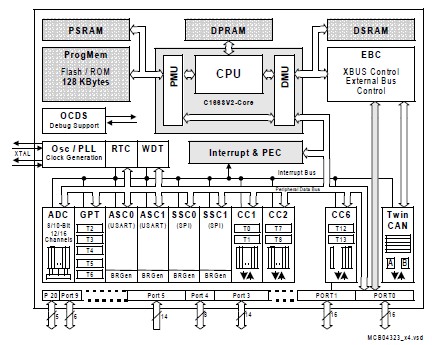

The SAF-XC164CS-16F40F derivative is a full featured single-chip CMOS microcontroller. The SAF-XC164CS-16F40F extends the functionality and performance of the C166 Family in terms of instructions (MAC unit), peripherals, and speed. They combine high CPU performance (up to 40 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. The SAF-XC164CS-16F40F also provides clock generation via PLL and various on-chip memory modules such as program ROM or Flash, program RAM, and data RAM.

Parametrics

SAF-XC164CS-16F40F absolute maximum ratings: (1)Storage temperature TST: -65 to 150 °C; (2)Junction temperature TJ: -40 to 150 °C under bias; (3)Voltage on VDDI pins with respect to ground (VSS)VDDI: -0.5 to 3.25 V; (4)Voltage on VDDP pins with respect to ground (VSS)VDDP: -0.5 to 6.2 V; (5)Voltage on any pin with respect to ground (VSS)VIN: -0.5 to VDDP + 0.5 V; (6)Input current on any pin during overload condition: -10 to 10 mA; (7)Absolute sum of all input currents during overload condition: |100| mA.

Features

SAF-XC164CS-16F40F features: (1)High Performance 16-bit CPU with 5-Stage Pipeline; (2)16-Priority-Level Interrupt System with up to 75 Sources, Sample-Rate down to 50 ns; (3)8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC), 24-Bit Pointers Cover Total Address Space; (4)Clock Generation via on-chip PLL (factors 1:0.15 … 1:10), or via Prescaler (factors 1:1 … 60:1); (5)On-Chip Memory Modules; (6)On-Chip Peripheral Modules; (7)Idle, Sleep, and Power Down Modes with Flexible Power Management; (8)Programmable Watchdog Timer and Oscillator Watchdog.
