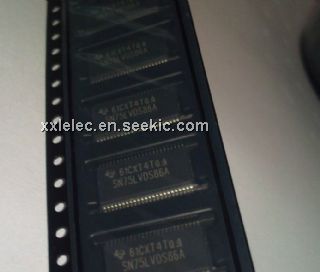

SN75LVDS86ADGGR

Product Summary

The SN75LVDS86ADGGR is a FlatLink receiver contains three serial-in 7-bit parallel-out shift registers and four low-voltage differential signaling (LVDS) line receivers in a single integrated circuit. These functions allow receipt of synchronous data from a compatible transmitter, such as the SN75LVDS86ADGGR, ’83, ’84, or ’85, over four balanced-pair conductors and expansion to 21 bits of single-ended low-voltage LVTTL synchronous data at a lower transfer rate. When receiving, the high-speed LVDS data is received and loaded into registers at seven times the LVDS input clock (CLKIN) rate.

Parametrics

SN75LVDS86ADGGR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 4 V; (2)Voltage range at any terminal: -0.5 V to VCC + 0.5 V; (3)Electrostatic discharge: All pins (Class 3A): 4 KV; (4)All pins (Class 2B): 200 V; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (7)Storage temperature range, Tstg: -65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 in) from case for 10 s: 260℃.

Features

SN75LVDS86ADGGR features: (1)3:21 Data Channel Expansion at up to 178.5 Mbytes/s Throughput; (2)Suited for SVGA, XGA, or SXGA Display Data Transmission From Controller to Display With Very Low EMI; (3)Three Data Channels and Clock Low-Voltage Differential Channels In and 21 Data and Clock Low-Voltage TTL Channels Out; (4)Operates From a Single 3.3-V Supply Tolerates 4-kV HBM ESD; (5)Packaged in Thin Shrink Small-Outline Package (TSSOP) With 20-Mil Terminal Pitch; (6)Consumes Less Than 1 mW When Disabled; (7)Wide Phase-Lock Input Frequency Range 31 MHz to 68 MHz; (8)No External Components Required for PLL; (9)Inputs Meet or Exceed the Standard Requirements of ANSI EIA/TIA-644 Standard; (10)Improved Replacement for the DS90C364 and SN75LVDS86; (11)Improved Jitter Tolerance; (12)Available in Q-Temp Automotive High Reliability Automotive Applications Configuration Control / Print Support Qualification to Automotive Standards.

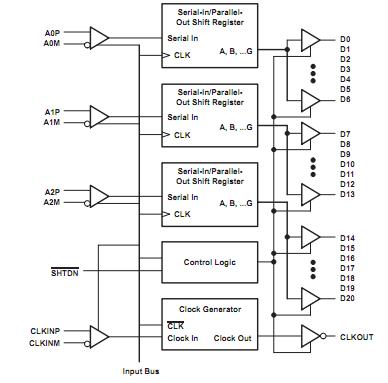

Diagrams
