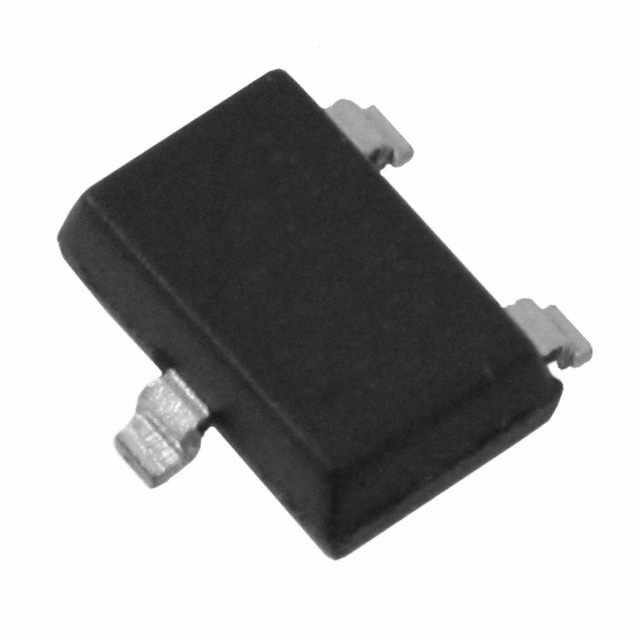

A1205LLHLT-T

a1205llhlt-t, Continuous-Time Bipolar Switch, SOT, 30 V, 25 mA, Allegro MicroSystems

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: A1205LLHLT-T

Brand:: Allegro MicroSystems - Allegro | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:A1205LLHLT-T
US $2.30 - 2.50
Quantity:

piece

Product Summary

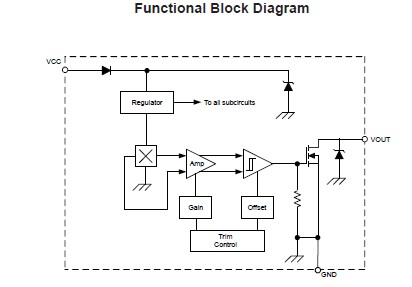

The a1205llhlt-t is a Continuous-Time Bipolar Switch. It has identical specifications as the A1201 but is recommended for applications that require pulsing VCC to conserve power. Overall, the a1205llhlt-t, produced with BiCMOS technology, consists of continuous-time devices that feature fast poweron time and low-noise operation. The a1205llhlt-t is performed after packaging to ensure increased switchpoint accuracy by eliminating offsets that can be induced by package stress. Unique Hall element geometries and lowoffset amplifiers help to minimize noise and to reduce the residual offset voltage normally caused by device overmolding, temperature excursions, and thermal stress.

Parametrics

a1205llhlt-t absolute maximum ratings: (1)Supply Voltage VCC: 30 V; (2)Reverse Supply Voltage VRCC: –30 V; (3)Output Off Voltage VOUT: 30 V; (4)Reverse Output Voltage VROUT: –0.5 V; (5)Output Current Sink IOUTSINK: 25 mA; (6)Operating Ambient Temperature TA: Range E –40 to 85 ℃, Range L –40 to 150 ℃; (7)Maximum Junction Temperature TJ(max): 165 ℃; (8)Storage Temperature Tstg: –65 to 170 ℃.

Features

a1205llhlt-t features: (1)Ideal for applications that require pulsing VCC to conserve power; (2)Continuous-time operation; (3)Fast power-on time; (4)Low noise; (5)Stable operation over full operating temperature range; (6)Reverse battery protection; (7)Solid-state reliability; (8)Factory-programmed at end-of-line for optimum performance; (9)Robust EMC performance; (10)High ESD rating; (11)Regulator stability without a bypass capacitor.
