Product Summary

The a3983slptr is a complete microstepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, and eighth-step modes, with an output drive capacity of up to 35 V and ±2 A. The a3983slptr includes a fixed off-time current regulator which has the ability to operate in Slow or Mixed decay modes. The translator is the key to the easy implementation of the a3983slptr. Simply inputting one pulse on the STEP input drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. The a3983slptr interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.

Parametrics

a3983slptr absolute maximum ratings: (1)Load Supply Voltage VBB: 35 V; (2)Output Current IOUT: ±2 A; (3)Logic Input Voltage VIN: –0.3 to 7 V; (4)Sense Voltage VSENSE: 0.5 V; (5)Reference Voltage VREF: 4 V; (6)Operating Ambient Temperature TA Range S: –20 to 85℃; (7)Maximum Junction TJ(max): 150℃; (8)Storage Temperature Tstg: –55 to 150℃; (9)Package Thermal Resistance RθJA Package LP; 4-layer PCB, based on JEDEC standard): 28℃/W.

Features

a3983slptr features: (1)Low RDS(ON) outputs; (2)Automatic current decay mode detection/selection; (3)Mixed and Slow current decay modes; (4)Synchronous rectification for low power dissipation; (5)Internal UVLO and thermal shutdown circuitry; (6)Crossover-current protection.

Diagrams

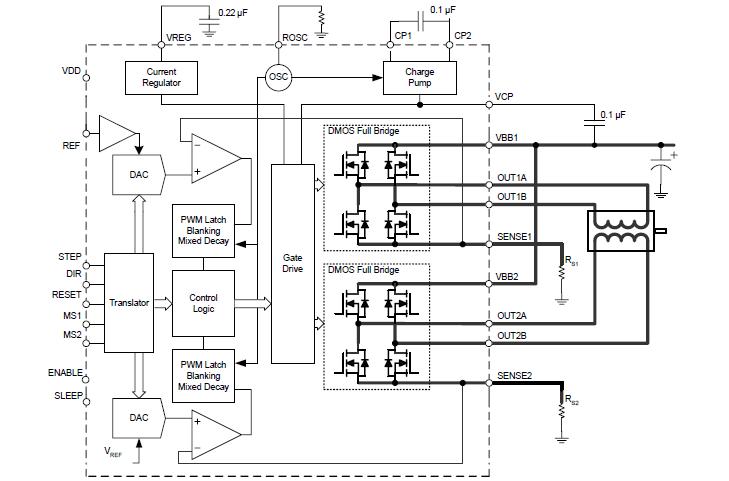

a3983slptr block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A3983SLPTR
A3983SLPTR

IC DRIVER MICROSTEPPING 24-TSSOP
Data Sheet
Negotiable
A3983SLPTR-T
A3983SLPTR-T

IC DRIVER MICROSTEPPING 24-TSSOP
Data Sheet
0-1: $3.10
1-10: $2.77
10-50: $2.49
50-100: $2.27
100-250: $2.05
250-500: $1.84
500-1000: $1.55
