Product Summary

The ad8004an is a quad, low power, high speed amplifier designed high speed applications where dual power supplies of up to operate onsingle or dual supplies. The ad8004an utilizes a current feedback architecture and features high slew rate of 3000V/μs making the ad8004an ideal for handling large amplitude pulses. Additionally, the ad8004an provides gain flatness of 0.1dB to 30MHz while offering differential gain and phase error of 0.04% and 0.10°. Applications of the ad8004an include: Image Scanners, Active Filters, Video Switchers and Special Effects.

Parametrics

ad8004an absolute maximum ratings: (1) Supply Voltage: 12.6V; (2) Internal Power Dissipation, Plastic DIP Package (N) : Observe Derating Curves, Small Outline Package (R) : Observe Derating Curves; (3) Input Voltage (Common Mode) : ±VS; (4) Differential Input Voltage: ±2.5V; (5) Output Short Circuit Duration: Observe Power Derating Curves; (6) Storage Temperature Range (N, R) : -65 to +125°C; (7) Operating Temperature Range (A Grade) : -40 to +85°C; (8) Lead Temperature Range (Soldering10sec) : +300°C.

Features

ad8004an features: (1) High Speed: 250 MHz-3dB Bandwidth (G = +1) , 3000 V/μs Slew Rate, 21 ns Settling Time to 0.1%, 1.8 ns Rise Time for 2 V Step; (2) Low Power: 3.5 mA/Amp Power Supply Current (35 mW/Amp) ; (3) Single Supply Operation: Fully Specified for +5 V Supply; (4) Good Video Specifications; (5) Gain Flatness 0.1 dB to 30 MHz; (6) 0.04% Differential Gain Error; (7) 0.10° Differential Phase Error; (8) Low Distortion: 78 dBc THD at 5MH, C61dBc THD at 20MH; (9) High Output Current of 50mA; (10) Available in a 14-Lead Plastic DIP and SOIC.

Diagrams

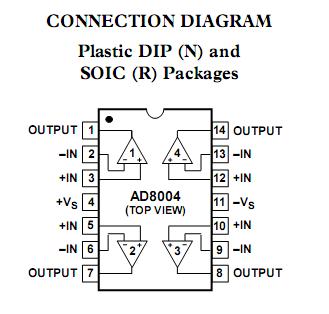

ad8004an Connection Diagram
