ADV7511KSTZ

adv7511kstz, 100-lead LQFP, 225MHz, 1.8 V to 3.3 V, High-Definition Multimedia Inter-face transmitter, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: ADV7511KSTZ

Brand:: Analog Devices - ADI | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:ADV7511KSTZ
US $2.30 - 2.50
Quantity:

piece

Product Summary

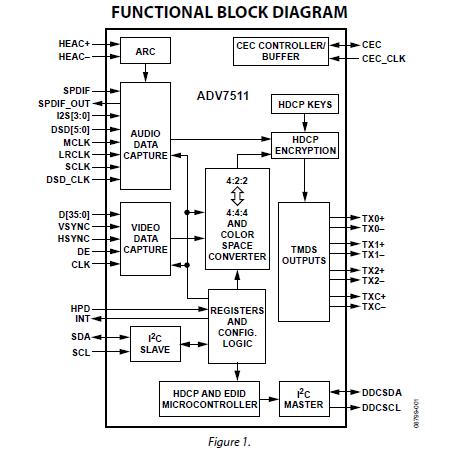

The adv7511kstz is a 225 MHz High-Definition Multimedia Inter-face (HDMI) transmitter, which is ideal for home entertainment products including DVD players/recorders, digital set top boxes, A/V receivers, gaming consoles, and PCs. The digital video interface contains an HDMI 1.4- and a DVI 1.0-compatible transmitter, and supports all HDTV formats (including 1080p with 12-bit Deep Color). The adv7511kstz supports the HDMI 1.4-specific features, HEAC (ARC), and 3D video. In addition to these features, the adv7511kstz supports x.v.Color) high bit rate audio, and programmable AVI InfoFrames. With the inclusion of HDCP, the adv7511kstz allows the secure transmission of protected content as specified by the HDCP 1.4 protocol. The adv7511kstz supports both S/PDIF and 8-channel I2S audio. Its high fidelity 8-channel I2S can transmit either stereo or 7.1 surround audio up to 768 kHz. The S/PDIF can carry compressed audio including Dolby Digital, DTS and THX Fabricated in an advanced CMOS process, the adv7511kstz is provided in a 100-lead LQFP surface-mount plastic package and is specified over the 0℃ to +70℃ temperature range.

Parametrics

adv7511kstz absolute maximum ratings: (1)power performance: 225MHz; (2)input power: 1.8 V to 3.3 V; (3)temperature range: 0℃ to +70℃ .

Features

adv7511kstz features: (1)Audio return channel (ARC); (2)3D video support; (3)225 MHz supports 12-bit Deep Color operation in all video formats up to 1080p; (4)Supports gamut metadata packet transmission; (5)Integrated CEC buffer/controller—upgraded to HDMI 1.4; (6)Compatible with DVI 1.0 and HDCP 1.4; (7)Video/audio inputs accept logic levels from 1.8 V to 3.3 V; (8)On-chip MPU with I2C master to perform HDCP operations and EDID reading operations; (9)5 V tolerant I2C and HPD I/Os, no extra device needed; (10)No audio master clock needed for supporting S/PDIF and I2S; (11)On-chip MPU reports HDMI events through interrupts and registers.
