ADV7850KBCZ-5

Product Summary

The ADV7850KBCZ-5 is a high quality, single chip, multiformat video decoder graphics digitizer with an integrated 4:1 multiplexed HDMIR receiver. This multiformat 3D comb filter decoder supports the conversion of PAL, NTSC, and SECAM standards in the form of a composite or an S-Video input signal into a HDMI output stream. SCART and overlay functionality are enabled by the ability of the ADV7850KBCZ-5 to process CVBS and standard definition RGB signals simultaneously. The ADV7850KBCZ-5 contains one main component processor (CP)that processes YPrPb and RGB component formats, including RGB graphics. The ADV7850KBCZ-5 can operate in quad HDMI and analog input mode, thus allowing for fast switching between the analog video inputs and HDMI. Applications are (1)HDTVs; (2)Set-top boxes; (3)AV receivers; (4)Projectors; (5)Video matrix switchers.

Parametrics

ADV7850KBCZ-5 absolute maximum ratings: (1)AVDD to GND: 2.2 V; (2)VDD to GND: 2.2 V; (3)PVDD to GND: 2.2 V; (4)TX_AVDD to GND: 2.2 V; (5)TX_PVDD to GND: 2.2 V; (6)SAVDD to GND: 2.2 V; (7)SDVDD to GND: 2.2 V; (8)CVDD to GND: 2.2 V; (9)DVDDIO to GND: 4.0 V; (10)TVDD to GND: 4.0 V; (11)AC_AVDD to GND: 4.0 V; (12)Maximum difference across all 1.8 V supplies: ?0.3 V to +0.3 V; (13)Maximum difference across all 3.3 V supplies: ?0.3 V to +0.3 V; (14)Maximum difference between 3.3 V domain supplies and 1.8 V domain supplies: ?0.3 V to +2.2 V; (15)Digital inputs voltage to GND: ?0.3 V to DVDDIO + 0.3 V; (16)Digital outputs voltage to GND: ?0.3 V to DVDDIO + 0.3 V; (17)5 V tolerant digital inputs to GND1: 5.5 V; (18)Analog inputs to GND: ?0.3V to AVDD + 0.3 V?0.3V to AC_AVDD + 0.3 V; (19)XTALN and XTALP to GND: ?0.3 V to PVDD + 0.3 V; (20)Maximum junction temperature (TJ MAX): 125°C; (21)Storage temperature range: ?65°C to +150°C; (22)Infrared reflow soldering (20 sec): 260°C.

Features

ADV7850KBCZ-5 features: (1)Main features: 4-port HDMI Xpressview receiver; 170 MHz video and graphics digitizer; Complete 3D comb video decoder; Stereo audio codec; High speed serial output (TMDS); (2)HDMI support: 3D TV support Audio return channel (ARC); Extended colorimetry, including sYCC601, Adobe RGB, Adobe YCC 601, and xvYCC extended gamut color; (3)4:1 HDMI 297 MHz receiver: Fast switching of HDMI ports (Xpressview); 3D TV video format support; HDCP 1.4 support with internal HDCP keys; Adaptive HDMI equalizer; Full HDCP repeater support; S/PDIF interface for 4 single-mode ARC outputs; Up to 36-bit Deep Color support; Complete HDMI audio support; Audio extraction available; Support for up to 16 VSIs (including THX media director).

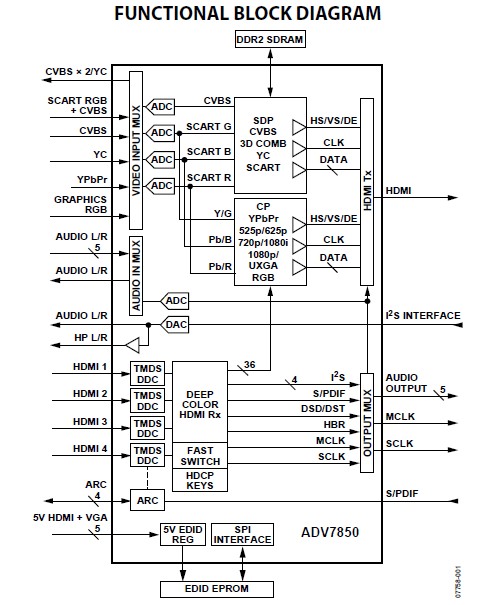

Diagrams
