Product Summary

The aptm100a13sg is a phase leg Series & parallel diode. It is suit for (1)Motor control; (2)Switched Mode Power Supplies; (3)Uninterruptible Power Supplies.

Parametrics

aptm100a13sg absolute maximum ratings: (1)VDSS Drain - Source Breakdown Voltage: 1000 V; (2)I Tc = 25°C 65 D Continuous Drain Current Tc = 80°C: 49A; (3)IDM Pulsed Drain current: 240 A; (4)VGS Gate - Source Voltage: ±30 V; (5)RDSon Drain - Source ON Resistance: 156 mΩ; (6)PD Maximum Power Dissipation Tc = 25°C: 1250 W; (7)IAR Avalanche current (repetitive and non repetitive): 24 A; (8)EAR Repetitive Avalanche Energy: 30mJ; (9)EAS Single Pulse Avalanche Energy: 1300 mJ.

Features

aptm100a13sg features: (1)Low RDSon; (2)Low input and Miller capacitance; (3)Low gate charge; (4)Fast intrinsic reverse diode; (5)Avalanche energy rated; (6)Very rugged; (7)Kelvin source for easy drive; (8)Very low stray inductance; (9)High level of integration.

Diagrams

aptm100a13sg pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

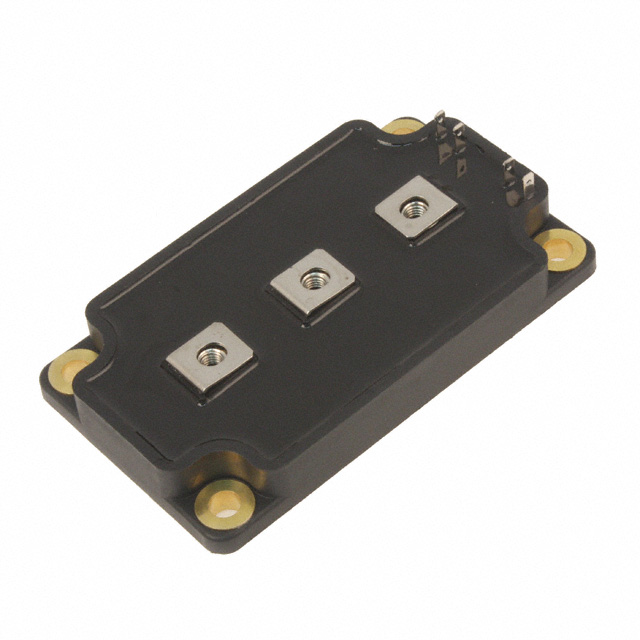

APTM100A13SG
APTM100A13SG

PWR MODULE MOSFET 1000V 65A SP6
Data Sheet
0-1: $144.41
1-10: $136.95
10-100: $129.48
100-250: $126.99
250-500: $124.50
500-1000: $119.52
