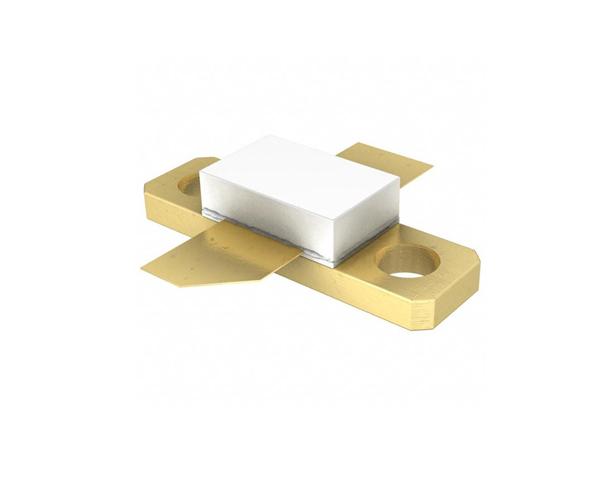

BLF6G21-10G,112

blf6g21-10g,112, Power LDMOS transistor, SOT, NXP Semiconductors, 65 V, 2200 MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: BLF6G21-10G,112

Brand:: NXP Semiconductors - nxp | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:BLF6G21-10G,112
US $2.30 - 2.50
Quantity:

piece

Product Summary

The blf6g21-10g,112 is a 10 W LDMOS power transistor for base station applications at frequencies from HF to 2200 MHz. Applications include RF power amplifiers for GSM, PHS, EDGE, CDMA and W-CDMA base stations and multi carrier applications in the HF to 2200 MHz frequency range, and Broadcast drivers.

Parametrics

blf6g21-10g,112 absolute maximum ratings: (1)VDS drain-source voltage: 65 V; (2)VGS gate-source voltage: -0.5 to +13 V; (3)Tstg storage temperature: -65 to +150℃; (4)Tj junction temperature: 225℃; (5)Rth(j-case) thermal resistance from junction to case Tcase = 80℃; PL(AV) = 11W: 3.2 K/W.

Features

blf6g21-10g,112 features: (1)Typical 2-carrier W-CDMA performance at frequencies of 2110 MHz and 2170 MHz, a supply voltage of 28 V and an IDq of 100 mA: Average output power = 0.7 W, Gain = 18.5 dB, Efficiency = 15 %, ACPR = -50 dBc; (2)Typical 1-carrier W-CDMA performance at frequencies of 2110 MHz and 2170 MHz, a supply voltage of 28 V and an IDq of 100 mA: Average output power = 2 W, Gain = 19.3 dB, Efficiency = 31 %, ACPR = -39 dBc; (3)Easy power control; (4)Integrated ESD protection; (5)Excellent ruggedness; (6)High efficiency; (7)Excellent thermal stability; (8)No internal matching for broadband operation; (9)Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances (RoHS).
