Product Summary
The byy57-1200 is a hermetically sealed 35A diode, which is available in different reverse voltage classes up to 1500V. The applications of the byy57-1200 include Power supplies, Rectifier diode in car generators, Rectifier bridges/stacks, Back-off-diodes.
Parametrics
byy57-1200 absolute maximum ratings: (1)BYY58-75: 75 V; (2)BYY58-100: 100 V; (3)BYY58-150: 150 V; (4)BYY58-200: 200 V; (5)BYY58-300: 300 V; (6)BYY58-400: 400 V; (7)BYY58-500: 500 V; (8)BYY58-600: 600 V; (9)BYY58-700: 700 V; (10)BYY58-800: 800 V; (11)BYY58-900: 900 V; (12)BYY58-1000: 1000 V; (13)BYY58-1100: 1100 V; (14)BYY58-1200: 1200 V; (15)BYY58-1300: 1300 V; (16)BYY58-1400: 1400 V; (17)BYY58-1500: 1500 V; (18)Forward current, arithmetic value: 35 A; (19)Surge forward current: 500 A; (20)Maximum rated value: 1250 A2s; (21)Repetitive peak forward current: 110 A; (22)Effective forward current: 55 A; (23)Junction temperature: 200℃; (24)Storage temperature range: - 50 to + 175 ℃.
Features
byy57-1200 features: (1)Forward current 35A; (2)Reverse voltage 75V – 1500V; (3)Hermetic press-fit package; (4)Available in different modifications of the package.

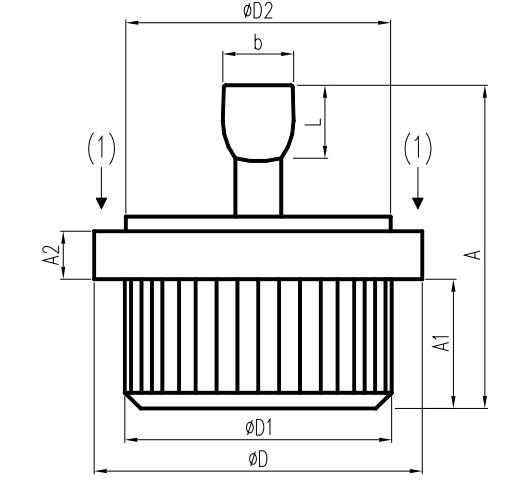

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BYY57-1200 |
Other |
|
Data Sheet |
Negotiable |
|
||||
