CL2N8-G

cl2n8-g, Temperature Compensated Constant Current LED Driver IC, 90V, 20mA , TO, Supertex, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: CL2N8-G

Brand:: Supertex, Inc - Supertex | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:CL2N8-G
US $2.30 - 2.50
Quantity:

piece

Product Summary

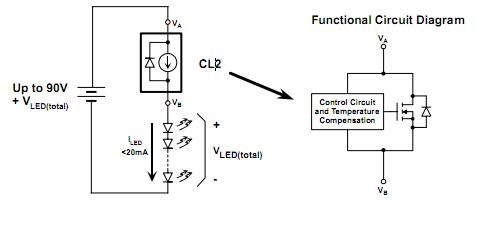

The cl2n8-g is a Simple 90V 20mA Temperature Compensated Constant Current LED Driver IC. The cl2n8-g is trimmed to provide a constant current of 20mA±10% at an input voltage of 5-90V. No external components are required. The cl2n8-g can be used as a two terminal constant current source or constant current sink. The applications of the cl2n8-g include LED driver , Industrial lamp indicators, Signage, Accent lighting, Automotive, Constant current source, Constant current sink.

Parametrics

cl2n8-g absolute maximum ratings: (1)VA-B, Operating Voltage: 100V; (2)TJ, Operating Junction Temperature: -40 to +125 ℃; (3)Ts, Storage Temperature: -55 to +150 ℃.

Features

cl2n8-g features: (1)5.0V to 90V operating range (VA-B); (2)20mA ±10% at 5-90V; (3)0.01% / ℃ Typical Temperature Coefficient; (4)TO-243AA (SOT-89), TO-252 (D-PAK), & TO-92 packages; (5)No external components (two terminal device); (6)Can be paralleled for higher current.
