DD90F160

power diode module, 2500V, 90A, module

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: DD90F160

Brand:: SanRex Corporation - SanRex | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:DD90F160
US $2.20 - 2.50
Quantity:

piece

Product Summary

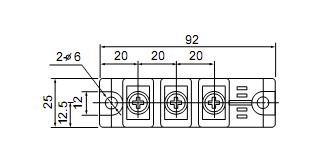

The dd90f160 is a power diode module. The dd90f160 is designed for various rectifier circuits. The dd90f160 has two diode chips connected in series in 25mm (1inch) width package and the mounting base is elctrically isolated from elements for simple heatsink construction. Wide voltage of the dd90f160 rating up to, 1600V is avaiable for various input voltage. Applications of the dd90f160 include: various rectifiers, battery chargers, DC motor drives.

Parametrics

dd90f160 absolute maximum ratings: (1) Repetitive Peak Reverse Voltage VRRM: 1600V; (2) Non-Repetitive Peak Reverse Voltage VRSM: 1700V; (3) Average Forward Current IF (AV) : 90A (Single phase, half wave, 180°C conduction, Tc: 93°C) ; (4) R.M.S. Forward Current IF (RMS) : 140A (Single phase, half wave, 180°C conduction, Tc: 93°C) ; (5) Surge Forward Current IFSM: 140A (1/2 cycle, 50/60H , peak value, non-repetitive) ; (6) Isolation Breakdown Voltage R.M.S VISO: 2500V (A.C.1minute) ; (7) Junction Temperature Tj: -40 to +125°C; (8) Storage Temperature Tstg: -40 to +125°C.

Features

dd90f160 features: (1) Isolated mounting base; (2) Two elements in a package for simple (single and three phase) bridge connections; (3) Highly reliable glass passivated chips; (4) High surge current capability.
