Product Summary
The dmp-vcx748s6r is a delta VCO module.
Parametrics
dmp-vcx748s6r absolute maximum ratings: (1)Supply Voltage( VCC ): 2.84 ± 0.2 V; (2)Supply Current ≦ 5 mA; (3)Tuning Voltage( VT ): 0.5 ~ 2.2V; (4)Operating Frequency: 741 ~ 755 MHz; (5)Operating Temperature Range: -20 ~ +75 °C; (6)Supply Voltage: 4V; (7)Storage Temperature: -35 ~ +85 °C.
Features
dmp-vcx748s6r features: (1)Operating Frequency ( VT= 0.5 V ) ≦ 741 MHz; ( VT= 2.2V ) ≧ 755 MHz; ( VT=1.35V ) 748+/-6 MHz; (2)Tuning Sensitivity: 12 ± 3 MHz/V; (3)Power Output (VT= 0V~3V) -8 ± 3 dBm; (4)Pushing Figure ( max. ) ( VCC= 2.84 ± 0.2 V ) ± 2.0 MHz; (5)Pulling Figure ( max. ) 4.0MHz; (6)( VSWR = 2.0:1, For All Phase, Ref. = 50 W ); (7)Phase Noise ( C/N ) ( At 10 KHz Offset ) ≦ - 93 dBc/Hz; (8)Phase Noise ( C/N ) ( At 100 KHz Offset ) ≦ - 113 dBc/Hz; (9)Spurious Response ( 2nd Harmonics ) ≦ - 18 dBc; (10)Input Impedance ≧ 10 MW; (11) Input Capacitance ≦ 47 Pf; (12) Load Impedance 50 W.

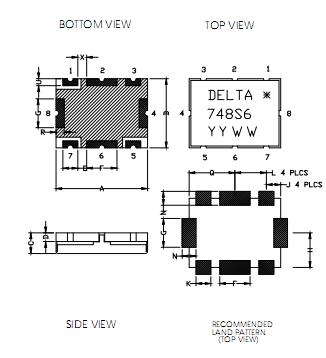

Diagrams
