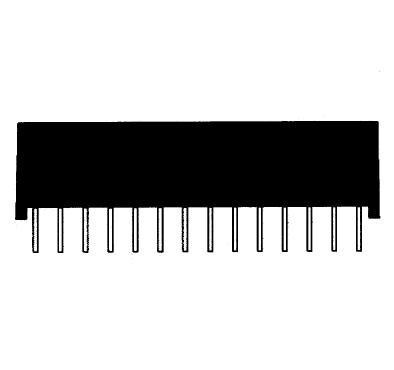

DS1225AD-200IND

ds1225ad-200ind, 64k Nonvolatile SRAM, -0.3V to +7.0V, 5.0V, -1.0 to +1.0 μA, 5 pF, 28-pin DIP, DALLAS

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: DS1225AD-200IND

Brand:: DALLAS - DALLAS | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:DS1225AD-200IND
US $2.30 - 2.50
Quantity:

piece

Product Summary

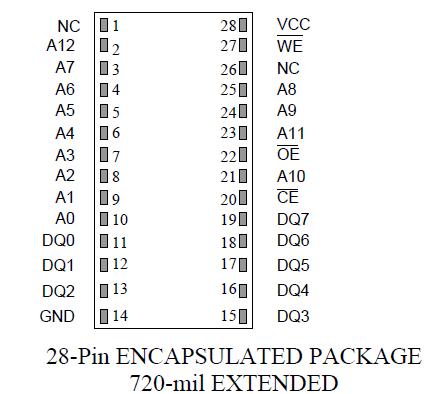

The ds1225ad-200ind is a 65,536-bit, fully static, nonvolatile SRAM which is organized as 8192 words by 8 bits. It has a self-contained lithium energy source and control circuitry which constantly monitors VCC for an out-of-tolerance condition. When such a condition occurs, the lithium energy source is automatically switched on and write protection is unconditionally enabled to prevent data corruption. The ds1225ad-200ind can be used in place of existing 8k x 8 SRAMs directly conforming to the popular bytewide 28-pin DIP standard. The ds1225ad-200ind also matches the pinout of the 2764 EPROM and the 2864 EEPROM, allowing direct substitution while enhancing performance. There is no limit on the number of write cycles that can be executed and no additional support circuitry is required for microprocessor interfacing.

Parametrics

ds1225ad-200ind absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.3V to +7.0V; (2)Operating Temperature: 0℃ to 70℃; -40℃ to +85℃ for IND parts; (3)Storage Temperature: -40℃ to +70℃; -40℃ to +85℃ for IND parts; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

ds1225ad-200ind features: (1)10 years minimum data retention in the absence of external power; (2)Data is automatically protected during power loss; (3)Directly replaces 8k x 8 volatile static RAM or EEPROM; (4)Unlimited write cycles; (5)Low-power CMOS; (6)JEDEC standard 28-pin DIP package; (7)Read and write access times as fast as 70 ns; (8)Lithium energy source is electrically disconnected to retain freshness until power is applied for the first time; (9)Full ±10% VCC operating range; (10)Optional industrial temperature range of -40℃ to +85℃, designated IND.
