HDMP-1022

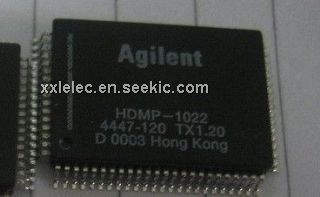

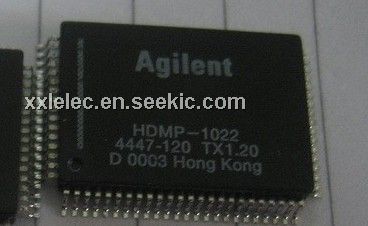

HDMP-1022, transmitter, 7.0 V, 13 mA, 21 bits, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: HDMP-1022

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:HDMP-1022
US $2.30 - 2.50
Quantity:

piece

Product Summary

The HDMP-1022 IS A transmitter. The HDMP-1022 is used to build a high-speed data link for point-to-point communication. The monolithic silicon bipolar transmitter chip and receiver chip are each provided in a standard aluminum M-Quad 80 package. From the user viewpoint, the HDMP-1022 can be thought of as providing a “virtual ribbon cable” interface for the transmission of data. Parallel data (a frame) loaded into the Tx (transmitter) chip is delivered to the Rx (receiver) chip over a serial channel, which can be either a coaxial copper cable or optical link. Applications are (1)Backplane/bus extender; (2)Video, image acquisition; (3)Point to point data links; (4)Implement SCI-FI standard; (5)Implement serial HIPPI specification.

Parametrics

HDMP-1022 absolute maximum ratings: (1)VCC, supply voltage: -0.5 to 7.0 V; (2)VIN,TTL, TTL input voltage: -0.7 to VCC + 0.5 V; (3)VIN,BLL, H50 input voltage: VCC - 2.0 to VCC + 0.5 V; (4)IO,TTL, TTL output source current: +13 mA; (5)Tstg, storage temperature: -40 to +130 °C; (6)TJ, junction temperature: -40 to +130°C; (7)Tmax, maximum assembly temperature (for 10 seconds maximum): +260 °C.

Features

HDMP-1022 features: (1)Transparent, extended ribbon cable replacement; (2)Implemented in a low cost aluminum M-quad 80 package; (3)High-speed serial rate 150-1500 MBaud; (4)Standard TTL interface 16, 17, 20, or 21 bits wide; (5)Reliable monolithic silicon bipolar implementation; (6)On-chip phase-locked loops: Transmit clock generation; Receive clock extraction.
