The hsmd-c197 is a Surface Mount Chip LED. It is designed in an industry standard package for ease of handling and use. Various different LED colors are available in nine compact, single color packages. The applications of the hsmd-c197 are Keypad Backlighting, Push-Button Backlighting, LCD Backlighting, Symbol Backlighting, Front Panel Indicator.
Parametrics
hsmd-c197 absolute maximum ratings: (1)DC Forward Current: 20 mA; (2)Peak Pulsing Current: 100 mA; (3)Power Dissipation: 52 mW; (4)Reverse Voltage (IR=100 µA): 5 V; (5)LED Junction Temperature: 95 °C; (6)Operating Temperature Range: -30 to +85 °C; (7)Storage Temperature Range: -40 to +85 °C.
Features
hsmd-c197 features: (1)Small Size; (2)Industry Standard Footprint; (3)Compatible with IR Solder; (4)Diffused Optics; (5)Operating Temperature Range of -30°C to +85°C; (6)Right Angle & Reverse Mount Package Available; (7)Various Colors Available; (8)Available in 8 mm Tape on 7 in. (178 mm)Diameter Reels.

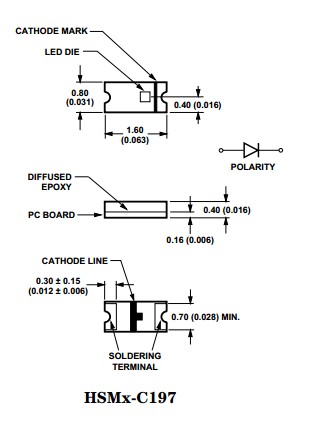

Diagrams
