Product Summary

The iac4/15-l is an input/output module.

Parametrics

iac4/15-l absolute maximum ratings: (1)Switch Form: 1 Form A (SPST-NO); (2)Duty: Continuous; (3)Isolation: 4,000V rms, 60 Hz; (4)Capacitance: 8 pF Typical (input to output); (5)Operating Temperature: –30°C to +80°C; (6)Storage Temperature: –40°C to +85°C; (7)Potting Compound Flammability: UL94V-0; (8)Approximate Weight: 1.38 oz. (35g).

Features

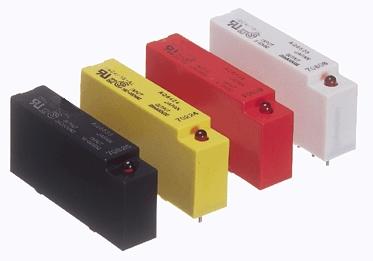

iac4/15-l features: (1)Industry standard package and pin-out; (2)Color coded by function; (3)4,000V rms optical isolation; (4)High immunity to false operation; (5)Series compatible; (6)Output modules can be controlled from sinking or sourcing logic; (7)Compatible with 2IO series mounting boards.

Diagrams

iac4/15-l pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IAC4/15-L
IAC4/15-L
Panasonic Electric Works
I/O Modules I/O Solid StateRelay SSR
Data Sheet
0-1: $7.71
1-25: $7.06
25-50: $6.31
50-100: $5.36
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IAC4/15
IAC4/15
Panasonic Electric Works
I/O Modules I/O Solid StateRelay SSR
Data Sheet
Negotiable
IAC4/15-AL
IAC4/15-AL
Panasonic Electric Works
I/O Modules I/O Solid StateRelay SSR
Data Sheet
0-1: $7.40
1-25: $6.80
25-50: $6.05
50-100: $5.14
IAC4/15-L
IAC4/15-L
Panasonic Electric Works
I/O Modules I/O Solid StateRelay SSR
Data Sheet
0-1: $7.71
1-25: $7.06
25-50: $6.31
50-100: $5.36
