Product Summary
The idg-650 is an integrated dual-axis angular rate sensor (gyroscope). It uses InvenSense proprietary and patented MEMS technology with vertically driven, vibrating masses to make a functionally complete, lowcost, dual-axis angular rate sensor. The idg-650 gyro uses two sensor elements with novel vibrating dual-mass bulk silicon configurations that sense the rate of rotation about the X- and Y-axis (in-plane sensing). This results in a unique, integrated dual-axis gyro with guaranteed-by-design vibration rejection and high cross-axis isolation. It is specifically designed for demanding consumer applications requiring low cost, small size and high performance. The idg-650 can be applied in general motion sensing, vehicle motion analysis, platform stabilization, and inertial measurement units.
Parametrics
idg-650 absolute maximum ratings: (1)Power Supply Voltage (VDD): -0.3V to +6.0V ; (2)Operating Temperature Range: -40 to +105°C; (3)Storage Temperature Range: -40 to +125°C.
Features
idg-650 features: (1)Integrated X- and Y-axis gyros on a single chip ; (2)Two separate outputs per axis for standard and high sensitivity; (3)Integrated amplifiers and low-pass filters ; (4)Auto-Zero function ; (5)On-chip temperature sensor ; (6)High vibration rejection over a wide frequency range ; (7)High cross-axis isolation by proprietary MEMS design ; (8)3V single-supply operation ; (9)Hermetically sealed for temp and humidity resistance ; (10)10,000 g shock tolerant ; (11)Smallest dual axis gyro package at 4 x 5 x 1.2mm ; (12)RoHS and Green Compliant.

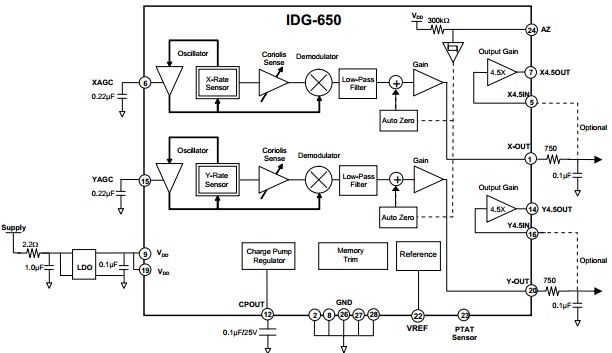

Diagrams
