IHLP4040DZER6R8M01

Product Summary

The ihlp4040dzer6r8m01 is a 15 A microBUCK SiC401A/B Integrated Buck Regulator with Programmable LDO. The ihlp4040dzer6r8m01 is capable of operating with all ceramic solution and switching frequencies up to 1 MHz. The programmable frequency, synchronous operation and selectable power-save allow operation at high efficiency across the full range of load current. The internal LDO may be used to supply 5 V for the gate drive circuits or it may be bypassed with an external 5 V for optimum efficiency and used to drive external n-channel MOSFETs or other loads. Additional features include cycle-by-cycle current limit, voltage soft-start, under-voltage protection, programmable over-current protection, soft shutdown and selectable power-save. The Vishay Siliconix SiC401A/B also provides an enable input and a power good output. It is ideal for: (1)Notebook, desktop and server computers; (2)Digital HDTV and digital consumer applications; (3)Networking and telecommunication equipment; (4)Printers, DSL, and STB applications; (5)Embedded applications; (6)Point of load power supplies.

Parametrics

ihlp4040dzer6r8m01 absolute maximum ratings: (1)VIN to PGND: - 0.3 to + 20 V; (2)LX (Transient < 100 ns)to PGND: - 2 to + 20 V; (3)EN/PSV, PGOOD, ILIM Reference to PGND: - 0.3 to + (VDD + 0.3 V; (4)BST to PGND: - 0.3 to + 25 V; (5)ENL: - 0.3 to VIN V; (6)AGND to PGND: - 0.3 to + 0.3 V; (7)Maximum Junction Temperature: 150 °C; (8)Storage Temperature: - 65 to 150°C; (9)Junction to Ambient Thermal Impedance (RthJA)(b)IC Section: 50 °C/W; (10)Maximum Power Dissipation Ambient Temperature = 25 °C: 3.4 W; Ambient Temperature = 100 °C: 1.3 W.

Features

ihlp4040dzer6r8m01 features: (1)High efficiency > 93 %; (2)15 A continuous output current capability; (3)Integrated bootstrap switch; (4)Programmable 200 mA LDO with bypass logic; (5)Temperature compensated current limit; (6)All ceramic solution enabled; (7)Pseudo fixed-frequency adaptive on-time control; (8)Programmable input UVLO threshold; (9)Independent enable pin for switcher and LDO; (10)Selectable ultra-sonic power-save mode (SiC401A); (11)Selectable power-save mode (SiC401B); (12)Programmable soft-start and soft-shutdown; (13)1 % internal reference voltage; (14)Power good output; (15)Over-voltage and under-voltage protections.

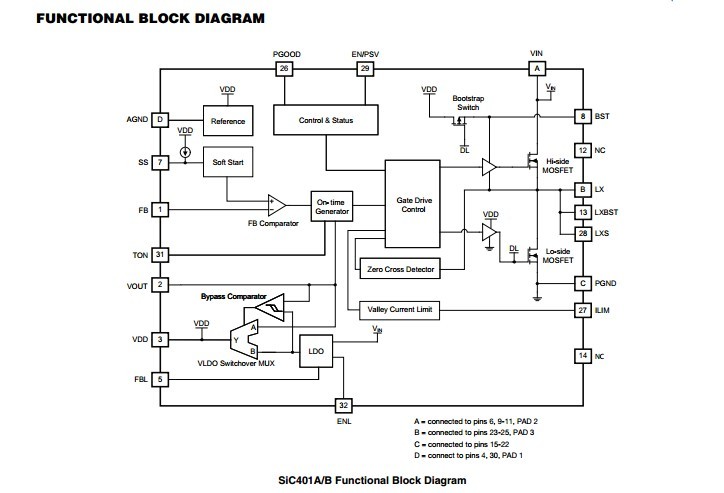

Diagrams
