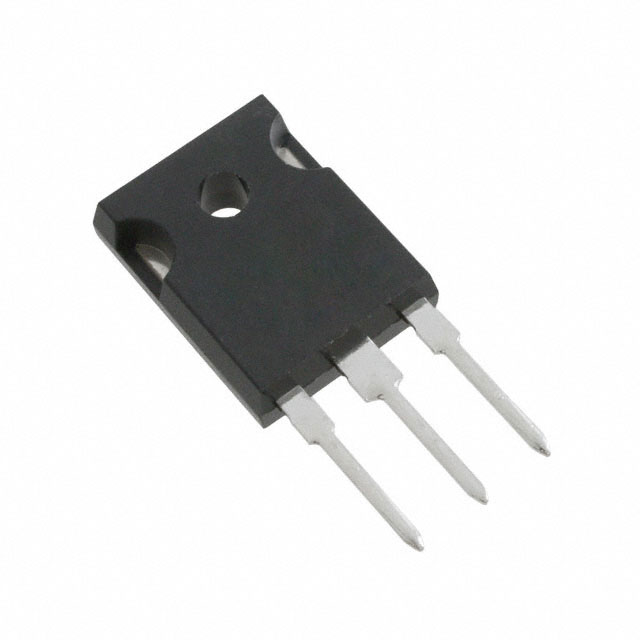

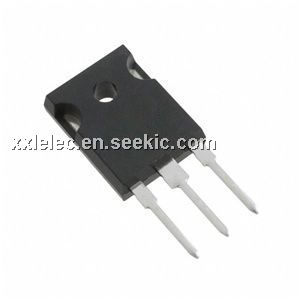

IRFP264NPBF

irfp264npbf, HEXFET Power MOSFET, 10V, 31 A, TO, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: IRFP264NPBF

Brand:: International Rectifier - IR | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:IRFP264NPBF
US $2.30 - 2.50
Quantity:

piece

Product Summary

The irfp264npbf is a HEXFET Power MOSFET. The irfp264npbf from International Rectifier utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit of the irfp264npbf, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

irfp264npbf absolute maximum ratings: (1)ID, @ TC = 25 ℃ Continuous Drain Current, VGS @ 10V: 44 A; (2)ID, @ TC = 100 ℃ Continuous Drain Current, VGS @ 10V: 31 A; (3)IDM, Pulsed Drain Current: 170 A; (4)EAS, Single Pulse Avalanche Energy: 520 mJ; (5)IAR, Avalanche Current: 25 A; (6)EAR, Repetitive Avalanche Energy: 38 mJ; (7)PD, @TC = 25 ℃ Power Dissipation: 380 W; (8)Linear Derating Factor: 2.6 W/℃; (9)VGS, Gate-to-Source Voltage: ±20 V; (10)dv/dt, Peak Diode Recovery dv/dt: 8.7 V/ns; (11)TJ, Operating Junction and: -55 to +175 ℃; (12)TSTG, Storage Temperature Range: -55 to +175 ℃; (13)Soldering Temperature, for 10 seconds: 300 ℃; (14)Mounting torqe, 6-32 or M3 screw: 10 lbfin.

Features

irfp264npbf features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175 ℃ Operating Temperature; (4)Fast Switching; (5)Fully Avalanche Rated; (6)Ease of Paralleling; (7)Simple Drive Requirements; (8)Lead-Free.
