ISD4004-08MSY

isd4004-08msy, Single-Chip Voice Record/Playback Device, –0.3 V to +7.0 V, 100K, TSOP, Winbond

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: ISD4004-08MSY

Brand:: Winbond - Winbond | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:ISD4004-08MSY
US $2.30 - 2.50
Quantity:

piece

Product Summary

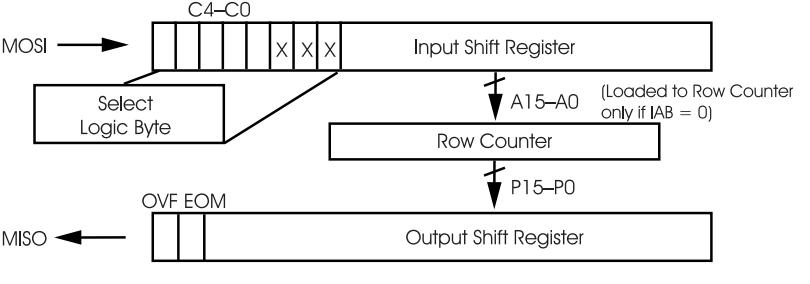

The isd4004-08msy is Single-Chip Voice Record/Playback Device. The isd4004-08msy solutions for 8- to 16-minute messaging applications which are ideal for cellular phones and other portable products. The isd4004-08msy includes an on-chip oscillator, antialiasing filter, smoothing filter, AutoMute feature, audio amplifier, and high density, multilevel Flash storage array. The isd4004-08msy series is designed to be used in a microprocessor or microcontroller-based system. Address and control of the isd4004-08msy are accomplished through a Serial Peripheral Interface (SPI) or Microwire Serial Interface to minimize pin count.

Parametrics

isd4004-08msy absolute maximum ratings: (1)Junction temperature: 150 ℃; (2)Storage temperature range: –65 to +150 ℃; (3)Voltage applied to any pin: (VSS – 0.3 V) to (VCC + 0.3 V); (4)Voltage applied to MOSI, SCLK, INT, RAC and SS pins: (VSS – 1.0 V) to 5.5V; (5)Lead temperature: 300 ℃; (6)VCC – VSS: –0.3 V to +7.0 V.

Features

isd4004-08msy features: (1)Single-chip voice record/playback solution; (2)Single +3 volt supply; (3)Low-power consumption; (4)Single-chip durations of 8, 10, 12, and 16 minutes; (5)High-quality, natural voice/audio reproduction; (6)AutoMute feature provides background noise attenuation during periods of silence; (7)No algorithm development required; (8)Microcontroller SPI or Microwire Serial Interface; (9)Fully addressable to handle multiple messages; (10)Nonvolatile message storage; (11)Power consumption controlled by SPI or Microwire control register; (12)100-year message retention (typical); (13)100K record cycles (typical); (14)On-chip clock source; (15)Available in die form, PDIP, SOIC, and TSOP; (16)Extended temperature (–20 to +70 ℃) and industrial temperature (–40 to +85 ℃) versions available.
