Product Summary

The k2200g is a silicon bilateral voltage triggered switch with greater power-handling capabilities than standard diacs. Uponpplication of a voltage exceeding the Sidac breakover voltage point, the k2200g on through a negative resistance regionto a low on-state voltage. Conduction will continue until the current is interrupted or drops below the minimum holding current of the k2200g. Applications of the k2200g include: High voltage lamp ignitors, Natural gas ignitors, Gas oil ignitors, High voltage power supplies, Xenon ignitors, Xenon ignitors, Pulse generators, Pulse generators and HID lighting ignitors.

Parametrics

k2200g absolute maximum ratings: (1) IT (RMS) : 1A ( On-State RMS Current Tj≤125°C 50/60Hz Sine Wave) ; (2) Repetitive Peak Off-State Voltage VDRM: ±180V; (3) VBO: 205V to 230V (Breakover Voltage 50/60Hz Sine Wave) ; (4) IDRM: 5μA (Repetitive Peak Off-State Current 50/60Hz Sine Wave V=VDRM) ; (5) IBO: 10μA (Breakover Current 50/60Hz Sine Wave)

Features

k2200g features: (1) AC circuit oriented; (2) Glass-passivated junctions; (3) High surge current capability.

Diagrams

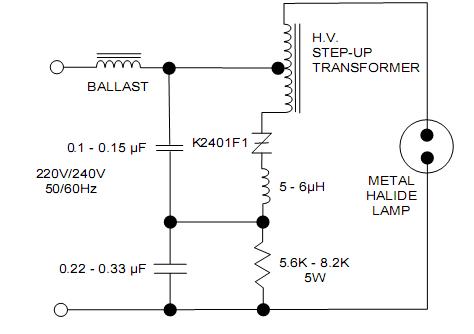

k2200g circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
K2200G
K2200G
Littelfuse
Sidacs 220V
Data Sheet
0-1: $0.61
1-10: $0.51
10-100: $0.42
100-250: $0.37
