Product Summary

The k2400g is a silicon bilateral voltage triggered switch with greater power-handling capabilities than standard diacs. Upon application of a voltage exceeding the sidac breakover voltage point, the k2400g switches on through a negative resistance region to a low on-state voltage. Conduction continues until the current is interrupted or drops below the minimum holding current of the device. The k2400g features glass-passivated junctions to ensure a rugged and dependable device capable of withstanding harsh environments. Variations of devices covered in this data sheet are available for custom design applications. Consult the factory for more information. Applications are (1)High-voltage lamp ignitors; (2)Natural gas ignitors; (3)Gas oil ignitors; (4)High-voltage power supplies; (5)Xenon ignitors; (6)Overvoltage protector; (7)Pulse generators; (8)Fluorescent lighting ignitors; (9)HID lighting ignitors.

Parametrics

k2400g absolute maximum ratings: (1)IT(RMS): 1A; (2)VDRM: 190V; (3)VDRM: 220 to 250V; (4)IDRM: 5μA; (5)IBO: 10μA; (6)IH: 60 to 150mA.

Features

k2400g features: (1)RoHS Compliant; (2)AC circuit oriented; (3)Glass-passivated junctions; (4)High surge current capability.

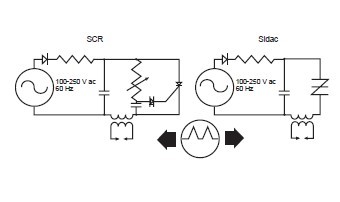

Diagrams

k2400g pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
K2400G
K2400G
Littelfuse
Sidacs 240V
Data Sheet
0-1: $0.69
1-10: $0.55
10-100: $0.47
100-250: $0.42
K2400GAP
K2400GAP

SIDAC 240V 1A DO-15
Data Sheet
0-2000: $0.28
K2400GH
K2400GH
Littelfuse
Sidacs SIDAC 240V HI ENERGY
Data Sheet
0-1: $0.43
1-10: $0.41
10-100: $0.40
100-250: $0.39
K2400GHAP
K2400GHAP

SIDAC 240V 1A DO-15
Data Sheet
0-2000: $0.31
K2400GHRP
K2400GHRP

SIDAC 240V 1A DO-15
Data Sheet
0-5000: $0.29
K2400GHU
K2400GHU

SIDAC 240V 1A DO-15
Data Sheet
0-1000: $0.33
K2400GHURP
K2400GHURP

SIDAC 240V 1A DO-15
Data Sheet
0-5000: $0.30
K2400GRP
K2400GRP
Littelfuse
Sidacs 240V
Data Sheet
0-3050: $0.34
3050-5000: $0.33
5000-10000: $0.31
