Product Summary
The lm211h/883 is a Voltage Comparator. The lm211h/883 has input currents nearly a thousand times lower than devices like the LM106 or LM710. The lm211h/883 is designed to operate over a wider range of supply voltages: from standard ±15V op amp supplies down to the single 5V supply used for IC logic. Their output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, The lm211h/883 can drive lamps or relays, switching voltages up to 50V at currents as high as 50 mA.
Parametrics
lm211h/883 absolute maximum ratings: (1)Total Supply Voltage (V84): 36V; (2)Output to Negative Supply Voltage: 50V; (3)Ground to Negative Supply Voltage: 30V; (4)Differential Input Voltage: ±30V; (5)Input Voltage (Note 4): ±15V; (6)Output Short Circuit Duration: 10 sec; (7)Operating Temperature Range: -25 to 85 ℃; (8)Lead Temperature (Soldering, 10 sec): 260 ℃; (9)Voltage at Strobe Pin: V+-5V; (10)Soldering Information: 260 ℃; (11)ESD Rating (Note 11): 300V.
Features
lm211h/883 features: (1)Operates from single 5V supply; (2)Input current: 150 nA max. over temperature; (3)Offset current: 20 nA max. over temperature; (4)Differential input voltage range: ±30V; (5)Power consumption: 135 mW at ±15V.

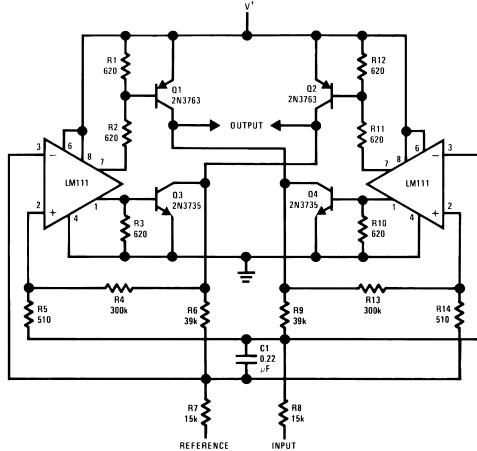

Diagrams
