Product Summary
The lm358l is a dual operational amplifier. The UTC lm358l consists of two independent high gain, internally frequency compensated operational amplifier. It can be operated from a single power supply and also split power supplies.
Parametrics
lm358l absolute maximum ratings: (1)Supply Voltage VCC: ±16 or 32 V; (2)Differential Input Voltage VI(DIFF): ±32 V; (3)Input Voltage VI: -0.3 ~ +32 V; (4)Output Short to Ground: Continuous PD: 600 mW; (5)Junction Temperature TJ: +125 °C; (6)Operating Temperature TOPR: 0 to +70 °C; (7)Storage Temperature TSTG: -65 to +150 °C .
Features
lm358l features: (1)Internally frequency compensated for unity gain; (2)Wide power supply range 3V - 32V; (3)Input common-mode voltage range include ground; (4)Large DC voltage gain.

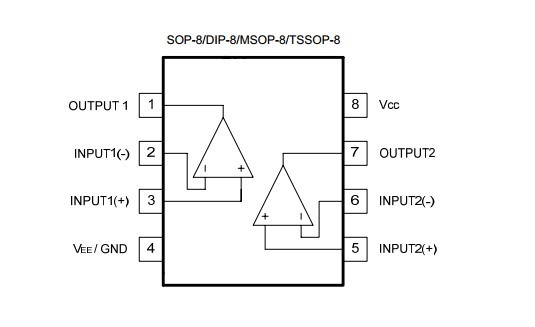

Diagrams
