Product Summary

The lm7372ima is a high speed dual voltage feedback amplifier. The lm7372ima has the slewing characteristic of current feedback amplifiers; yet the lm7372ima can be used in all traditional voltage feedback amplifier configurations. The applications of the lm7372ima include HDSL and ADSL Drivers, Multimedia broadcast systems, Professional video cameras, CATV/Fiber optics signal processing, Pulse amplifiers and peak detectors, HDTV amplifiers.

Parametrics

lm7372ima absolute maximum ratings: (1)Human Body Model: 1.5kV; (2)Machine Model: 200V; (3)Suppy Voltage: 36V; (4)Differential Input Voltage (VS = ±15V): ±10V; (5)Output Short Circuit to Ground: Continuous; (6)Storage Temp. Range: -65 to 150 ℃; (7)Infrared or Convection Reflow: 235 ℃; (8)Input Voltage: V- to V+; (9)Maximum Junction Temperature: 150 ℃.

Features

lm7372ima features: (1)-80dBc highest harmonic distortion @1MHz, 2VPP; (2)Very high slew rate: 3000V/μs; (3)Wide gain bandwidth product: 120MHz; (4)-3dB frequency @ AV = +2: 200MHz; (5)Low supply current: 13mA (both amplifiers); (6)High open loop gain: 85dB; (7)High output current: 150mA; (8)Differential gain and phase: 0.01%, 0.02°.

Diagrams

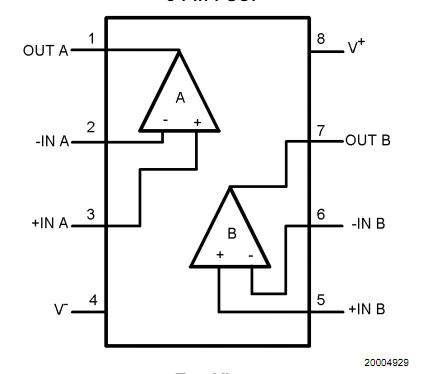

lm7372ima block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM7372IMA
LM7372IMA
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-192: $2.31
192-288: $2.08
288-528: $1.87
528-1008: $1.57
LM7372IMA/NOPB
LM7372IMA/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps High Output Dual Op Amp
Data Sheet
0-1: $3.16
1-25: $2.54
25-100: $2.31
100-250: $2.08
LM7372IMAX/NOPB
LM7372IMAX/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1790: $1.58
1790-2500: $1.50
2500-5000: $1.43
LM7372IMAX
LM7372IMAX
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-2500: $1.49
2500-5000: $1.43
