Product Summary
The lq057q3dc12 is a color TFT-LCD module.
Parametrics
lq057q3dc12 absolute maximum ratings: (1)Display size: 14.5 [5.7] cm; (2)Dot format (H × V): 320 × RGB × 240 dot; (3)Dot pitch (H × V): 0.12 × 0.36 mm ; (4)Active area (H × V): 115.2 × 86.4 mm; (5)Color: 262 144; (6)Input signal: 6-bit Analog RGB; (7)Viewing direction: 12:00; (8)Backlight type: 1CCFT; (9)Brightness: 350 cd/m2; (10)Contrast ratio: 300 : 1; (11)Power consumption: 3.9 W; (12)Outline dimensions (W × H × D) 144.0 × 104.6 × 13.0 mm; (13)Weight: 220 g; (14)Operating temperature: -10 to +70 ℃; (15)Storage temperature: -30 to +80 ℃.
Features
lq057q3dc12 features: (1)14.5cm [5.7] QVGA format; (2)Built-in long life CCFT backlight (50 000 h); (3)High brightness (350 cd/m); (4)Wide viewing angle.

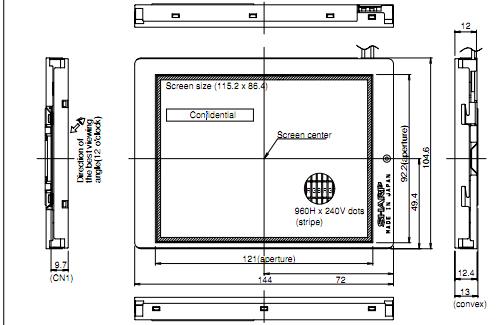

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ057Q3DC12 |
Sharp Microelectronics |
TFT Displays & Accessories 5.7" TFT 320X240 500 NITS |
Data Sheet |
Negotiable |
|
||||||||||
