LT1618EDD#PBF

lt1618edd#pbf, Constant-Voltage 1.4MHz Step-Up DC/DC Converter, 18V, 1.8 to 2.7 mA, MSOP, LTN Servotechnik GmbH

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: LT1618EDD#PBF

Brand:: LTN Servotechnik GmbH - LTN | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:LT1618EDD#PBF
US $2.30 - 2.50
Quantity:

piece

Product Summary

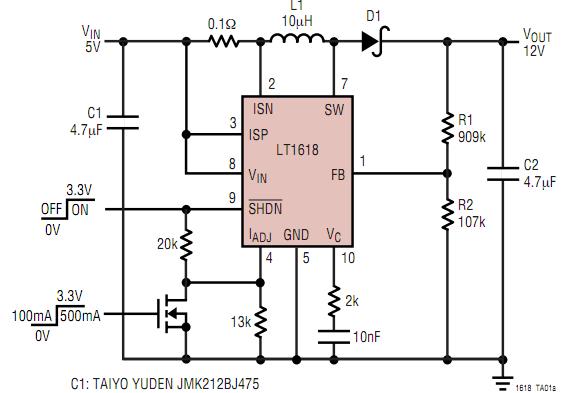

The lt1618edd#pbf is a Constant-Voltage 1.4MHz Step-Up DC/DC Converter. The lt1618edd#pbf combines a traditional voltage feedback loop and a unique current feedback loop to operate as a constant-current, constant-voltage source. This fixed frequency, current mode switcher operates from a wide input voltage range of 1.6V to 18V, and the high switching frequency of 1.4MHz permits the use of tiny, low profile inductors and capacitors. The current sense voltage of the lt1618edd#pbf is set at 50mV and can be adjusted using the IADJ pin. The applications of the lt1618edd#pbf include LED Backlight Drivers, USB Powered, Boost/SEPIC Converters, Input Current Limited Boost/SEPIC Converters, Battery Chargers.

Parametrics

lt1618edd#pbf absolute maximum ratings: (1)VIN, SHDN Voltage: 18V; (2)SW Voltage: 36V; (3)ISP, ISN Voltage: 36V; (4)IADJ Voltage: 6V; (5)FB Voltage: 1.5V; (6)VC Voltage: 1.5V; (7)Junction Temperature: 125 ℃; (8)Operating Temperature Range (Note 2): –40 to 85 ℃; (9)Storage Temperature Range: –65 to 150 ℃; (10)Lead Temperature (Soldering, 10 sec) (MSOP): 300 ℃.

Features

lt1618edd#pbf features: (1)Accurate Input/Output Current Control: ±5% Over Temperature; (2)Accurate Output Voltage Control: ±1%; (3)Wide VIN Range: 1.6V to 18V; (4)1.4MHz Switching Frequency; (5)High Output Voltage: Up to 35V; (6)Low VCESAT Switch: 200mV at 1A; (7)Available in (3mm × 3mm × 0.8mm) 10-Pin DFN and; (8)10-Pin MSOP Packages.
