Product Summary
The m27c512-90f6 is a 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). The m27c512-90f6 is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits.
Parametrics
m27c512-90f6 absolute maximum ratings: (1)TA, Ambient Operating Temperature: –40 to 125 ℃; (2)TBIAS, Temperature Under Bias: –50 to 125 ℃; (3)TSTG, Storage Temperature: –65 to 150 ℃; (4)TLEAD, Lead Temperature during Soldering: (note 1) ℃; (5)VIO, Input or Output Voltage (except A9): –2 to 7 V; (6)VCC, Supply Voltage: –2 to 7 V; (7)VA9, A9 Voltage: –2 to 13.5 V; (8)VPP, Program Supply Voltage: –2 to 14 V.
Features
m27c512-90f6 features: (1)5V ± 10% SUPPLY VOLTAGE in READ OPERATION; (2)ACCESS TIME: 45ns; (3)LOW POWER “CMOS” CONSUMPTION: Active Current 30mA, Standby Current 100μA; (4)PROGRAMMING VOLTAGE: 12.75V ± 0.25V; (5)PROGRAMMING TIMES of AROUND 6sec.; (6)ELECTRONIC SIGNATURE, Manufacturer Code: 20h, Device Code: 3Dh; (7)PACKAGES, Lead-Free Versions.

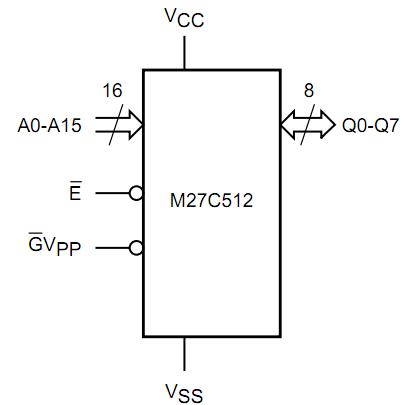

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C512-90F6 |
STMicroelectronics |
EPROM 512K (64Kx8) 90ns |
Data Sheet |
Negotiable |
|
||||
