Product Summary

The mp6101 is a GaAs PIN diodes. It is fabricated utilizing a gold contact mesa and protected with silicon nitride. The diodes have short carrier lifetime for fast switching speed and low series resistance. GaAs P00 diodes are available as bondable chips, chip-on-board components and in a variety of packages. It is ideal for: (1)Switches; (2)Attenuators; (3)Phase Shifters.

Parametrics

mp6101 absolute maximum ratings: (1)reverse voltage: breakdown voltage; (2)forward current: 50 ma @ 25°c; (3)incident power: +20 dbm @ 25°c; (4)operating temperature: -55°c to +175°c; (5)storage temperature: -55°c to +200°c.

Features

mp6101 features: (1)Low Series Resistance; (2)Fast Switching Speed; (3)Low Capacitance; (4)No Reverse Bias Required; (5)Available in Packages and Bondable Chips; (6)Available as Chip-on-Board Components.

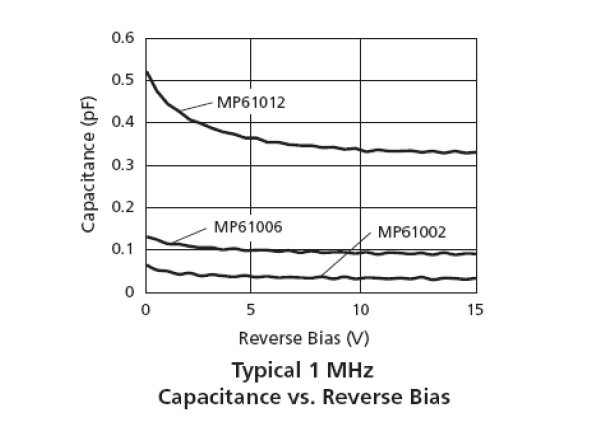

Diagrams

mp6101 pin connection
