PI3HDMI412ADZBE

PI3HDMI412ADZBE, deMux, 5 V, 120 mA, 1.0 W, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: PI3HDMI412ADZBE

Brand:: Pericom Semiconductor Corporation - pericom | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:PI3HDMI412ADZBE
US $2.20 - 2.50
Quantity:

piece

Product Summary

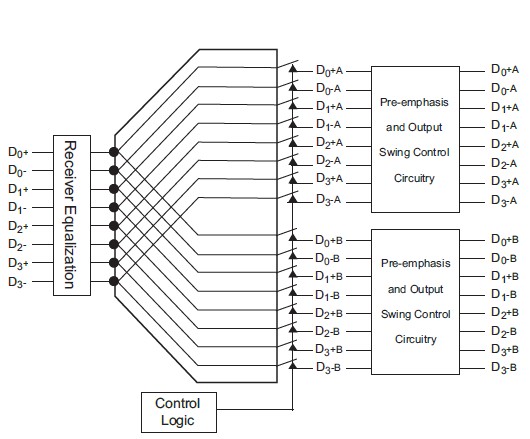

The PI3HDMI412ADZBE is an active single TMDS channel to two TMDS channe deMux with Hi-Z outputs. The device drives differential signals to multiple video display units. The PI3HDMI412ADZBE provides three controllable output swing levels that can be controlled through pin control or I2C control, depending on the mode select pin. The swing levels are 500mV, 700mV and 1000mV. This solution also provides a unique advanced pre-emphasis technique to increase rise and fall times which are reduced during transmission across long distances. The maximum DVI/HDMI data rate of 1.65Gbps provides a 1920x1080 resolution required by the next Gen HDTV and PC graphics products. Due to its active uni-directional feature, the PI3HDMI412ADZBE is de-signed for usage only for the video driver side. For PC graphics application, the device sits at the driver side to switch between multiple display units, such as PC LCD monitor, projector, TV, etc. The PI3HDMI412AD is the industry fi rst active DVI/HDMI compliant switch, which ensures transmitting high bandwidth video streams from PC graphics source to end display units.

Parametrics

PI3HDMI412ADZBE absolute maximum ratings: (1)Storage temperature: –65 °C to +150 °C; (2)Supply voltage to ground potential: –0.5 V to +5 V; (3)DC input voltage: –0.5 V to VDD; (4)DC output current: 120 mA; (5)Power dissipation: 1.0 W.
