Product Summary
The pl2303hxd is a low cost and high performance USB-to-Serial Bridge Controller.The pl2303hxd operates as a bridge between one USB port and one standard RS232 Serial port. The two large on-chip buffers accommodate data flow from two different buses. The USB bulk-type data of the pl2303hxd is adopted for maximum data transfer. Automatic handshake is supported at the Serial port. With these, a much higher baud rate can be achieved compared to the legacy UART controller.
Parametrics
pl2303hxd absolute maximum ratings: (1)Power Supply Voltage: -0.3 to 6.0 V; (2)Input Voltage: -0.3 to VDD+0.3 V; (3)Output Voltage: -0.3 to VDD+0.3 V; (4)Storage Temperature: -55 to 150℃.
Features
pl2303hxd features: (1)Full compliance with the USB Specification v1.1 and USB CDC v1.1; (2)Support the RS232 Serial interface; (3)Support automatic handshake mode; (4)Support Remote wake-up and power management; (5)256 bytes buffer each for upstream and downstream data flow; (6)Support default ROM or external EEPROM for device configuration; (7)On chip USB transceiver; (8)On chip crystal oscillator running at 12M Hz; (9)Supports Windows 98/SE, ME, 2000, XP, Windows CE3.0, CE .NET, Linux, and Mac OS; (10)28 Pins SOIC package.

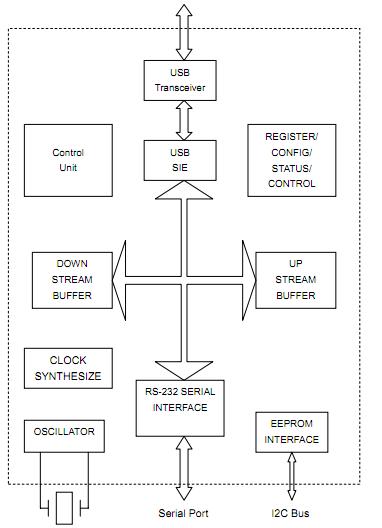

Diagrams
