Product Summary
The pm400dv1a060 is an intelligent power module. It is used in general purpose inverter, servo drives and other motor controls.
Parametrics
pm400dv1a060 absolute maximum ratings: (1)VCES collector-emitter voltage: 600V; (2)IC collector current: 400A; (3)ICRM collector current: 800A; (4)Ptot total power dissipation: 1262W; (5)IE emitter current: 400A; (6)IERM emitter current: 800A; (7)Tj junction temperature: -20 to 150℃.
Features
pm400dv1a060 features: (1)Adopting new 5th generation full-gate CSTBT chip; (2)The over-temperature protection which detects the chip surface temperature of CSTBT is adopted; (3)Error output signal is possible from all each protection upper and lower arm of IPM; (4)Compatible V-series package.

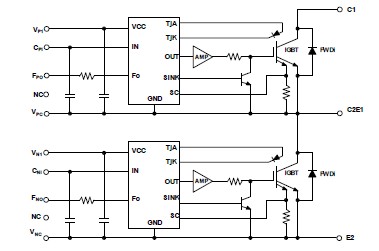

Diagrams
