Product Summary
The rec16b25-201 is a manual setting type optical encoder.
Parametrics
rec16b25-201 absolute maximum ratings: (1)Input voltage: DC5 ±5 %; (2)Input current: 30 mA maximum; (3)Output wave form: Square wave; (4)Output phases: A, B; (5)Resolution (P/R): 25, 50; (6)Phase difference of outputs A & B: 90°,±45°; (7)Maximum frequency response: 100 Hz; (8)Output signal: + 4.5 V minimum; (9)Light source: LED.
Features
rec16b25-201 features: (1)High resistant to electrostatic noise by using a plastic shaft; (2)Compact size of 16 mm square; (3)With mechanical ON/OFF push switch; (4)Long life.

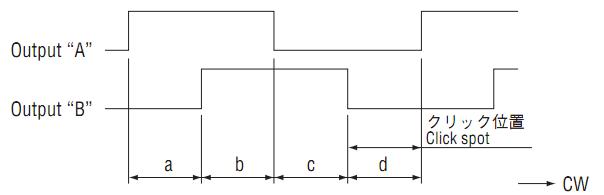

Diagrams
